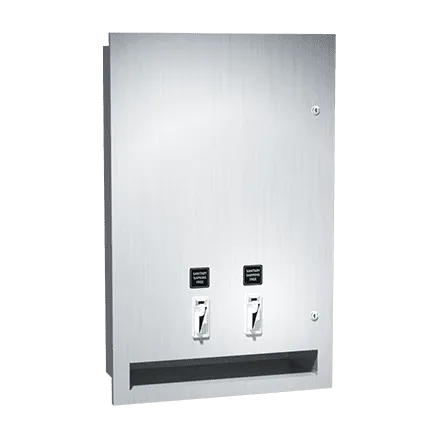

ASI 0468-2-F Semi-Recessed Dual Napkin and Tampon Vendor
The ASI 0468-2-F is the free-operation, no-coin version of this semi-recessed dual vendor. It holds 30 specified-size napkins and 27 specified-size tampons, and the two dispensers operate independently.
Capacity, construction, and operation
- Napkins: Capacity 30; single, cardboard-boxed products measuring 4-1/4" x 3" x 1-1/8".
- Tampons: Capacity 27; cardboard cylinders measuring 3/4" diameter x 5-1/4" long, with crimped ends.
- Construction: 18-gauge Type 304 stainless steel, alloy 18-8, with a satin finish.
- Dimensions: 17-1/4" W x 27-1/4" H x 6-1/2" D. The supplied SR collar enables semi-recessed mounting.
- Operation and security: The -F suffix denotes free, no-coin operation. An indicator displays when product is depleted and blocks the coin slot. Two tumbler locks secure the doors; the internal coin box is keyed differently from the door locks.
Installation and refilling
Provide a minimum rough wall opening of 16" W x 26" H x 4" D. Install the SR collar on the cabinet before mounting it in the recess; use #10 self-threading screws (by others). Refill by opening the door and manually reloading the tracks. Use the supplied feed-track weights for positive feed. The internally fastener-mounted dispensing mechanisms can be changed if the unit is reconfigured for a different coin denomination.
