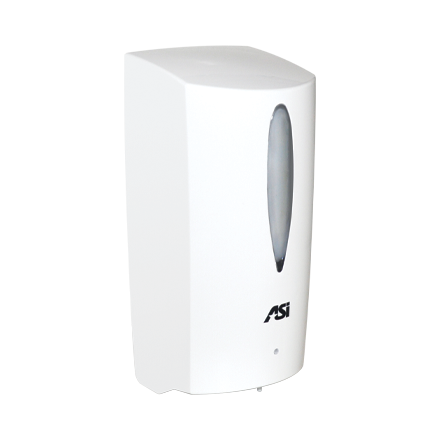

ASI 0361 Automatic Liquid Soap and Gel Hand Sanitizer Dispenser
The ASI 0361 is a touchless, battery-powered dispenser for liquid soap or gel hand sanitizer, with a 27 fl. oz. (0.8 L) capacity, a proximity sensor, and wall mounting; ASI also offers the optional FS-0300 mobile stand.
Specifications
- White, high-impact plastic body with a tamper-resistant level viewing window.
- Capacity: 27 fl. oz. (0.8 L), per ASI’s technical data sheet.
- Power: one 9V battery or six AA-size batteries; batteries are not included.
- ASI specifies soap viscosity of 5–3,500 cP and pH of 5.0–9.0. Avoid soaps containing reportable salts, chlorides, or alcohols.
- Dimensions: 4-5/8 in. × 10-5/16 in. × 4-7/16 in. (118 × 262 × 113 mm).
Installation and refilling
Mount to a wall or partition with four #8 screws and anchors. ASI gives a general installation height of 42–46 in. above finished floor and at least 10 in. above a countertop. For installations intended to follow the 2010 ADA Accessibility Standards, ASI’s guidance is to position the bottom of the unit no higher than 48 in. above finished floor; this is manufacturer guidance, not a blanket compliance determination. The dispenser releases its factory-preset dose when hands enter the sensor zone. To refill, unlock the body with the supplied special key, swing it open, and refill the internal container; replenish according to maintenance needs.
