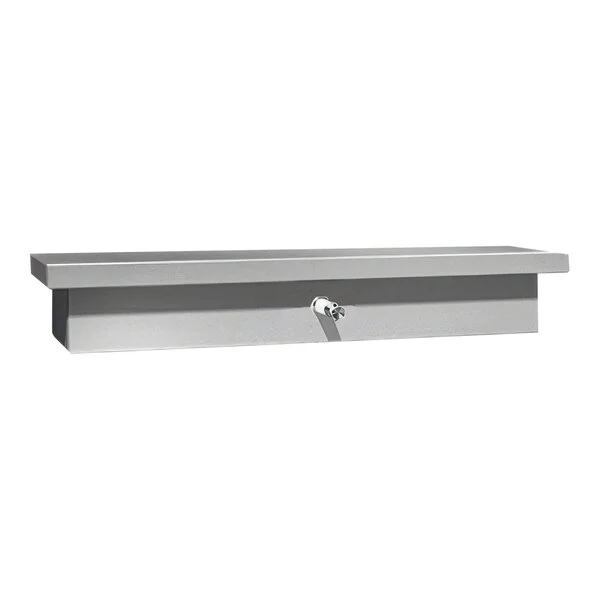

ASI 0318 Surface-Mounted Soap Dispenser and Shelf
This one-valve dispenser holds 83 oz (2.5 L) of liquid or lotion soap, synthetic detergent, or antibacterial soap. It is made of Type 304 stainless steel with a satin finish. Soap must have a viscosity of 100–2,500 cP and a pH of 5.5–8.5; ASI advises avoiding soaps containing reportable salts, chlorides, or alcohols.
Refilling and installation
Press the valve button to dispense soap. Refill the tank manually by opening the hinged shelf/cover, which is secured closed by a concealed latch. The dispenser measures 17-3/8 x 3-7/16 x 5-1/16 inches (440 x 87 x 130 mm) and mounts to a wall with two No. 10 screws supplied by others. ASI's guidance for the 2010 ADA Accessibility Standards is to install the valve no higher than 44 inches above the finished floor.
