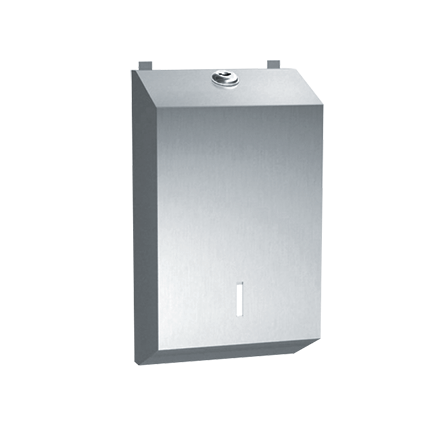

ASI 0262 Folded Tissue Dispenser
This surface-mounted dispenser is made of 22-gauge Type 304 stainless steel with a satin finish. It has a tumbler lock and a view slot, and holds up to 1,300 single- or double-fold toilet tissues.
Installation and positioning
The unit measures 4-3/4" W x 8-1/4" H x 3" D. It mounts to a wall or partition using #10 self-threading screws (not supplied), through the keyhole slots in the back. For manufacturer guidance referencing the 2010 ADA Accessibility Standards and 2015 ABA Standards, install the dispenser center line 7"–9" in front of the toilet and its outlet 15"–48" above the finished floor; this positioning guidance is not a blanket compliance determination.
Refilling
Tissues feed on user pull until depleted. The unit can be reloaded with a partial load in place and will continue feeding; the view slot indicates low supply from approximately 25% down to 5% capacity.
