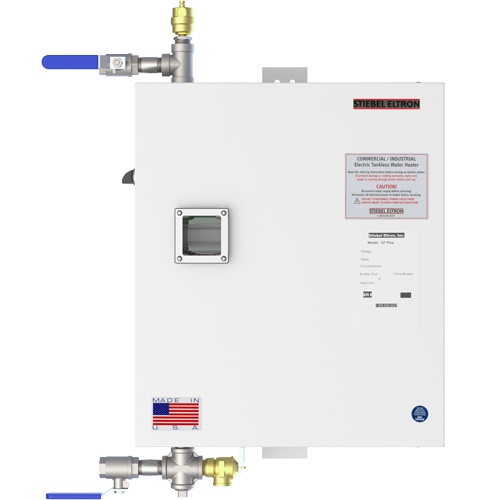

Stiebel Eltron CF Plus 12 kW (240V) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CF Plus 12 kW (240V) is a high-capacity, 3-phase electric tankless water heater engineered for immediate "Hot Start" delivery in commercial and industrial settings. This unit eliminates startup lag by maintaining internal heat and provides up to 20% energy savings compared to traditional tanks by removing standby heat loss.
Technical Specifications
- Power Output: 12.5 kW at 240V 3-Phase Delta.
- Amperage/Breaker: 30.07 Amps with a 35A breaker requirement.
- Temperature Rise: Provides an 85°F rise at 1 gpm and 43°F at 2 gpm.
- Activation: Reliable performance with a low 0.7 gpm activation rate.
- Setpoints: Factory programmed from 60–180°F and user-adjustable.
Engineering & Durability
- Construction: Features a high-grade 316L stainless steel heat exchanger and a NEMA 3 enclosure (NEMA 4/4X available).
- Safety: Equipped with an integrated air vent and a lead-free brass pressure relief valve.
- Control: Sophisticated electronic closed-loop control activates only the necessary elements based on real-time flow and temperature.
- Dimensions: The cabinet measures 24-15/32" W x 30-1/32" H x 11-5/32" D.
Compliance & Warranty
- Standards: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No.88.
- Warranty: 6-year leakage warranty and 2-year warranty on materials and workmanship.
- Origin: Made in the USA.
For the best pricing or to request a quote on the Stiebel Eltron CF-Plus-012-240, shop online at ProDryers or call today for expert assistance.
Download the C Series Commercial Options List
