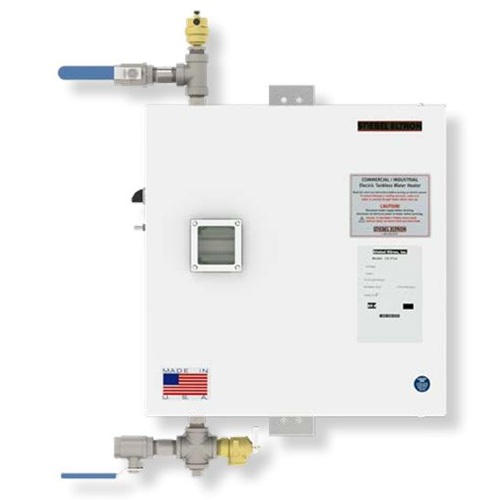

Stiebel Eltron CES Plus 15 kW (240V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CES Plus 15 kW (240V Delta) is a premier industrial-grade tankless heating solution designed to meet the rigorous demands of commercial facilities utilizing 240V 3-phase Delta electrical service. As a premier model in the CES Plus series (Part Number: CESPLUS-015-240), this unit delivers a consistent 15.00 kW of power, providing an instantaneous and endless supply of hot water while maintaining an exceptionally compact footprint. By heating water only on demand, it eliminates the standby heat loss associated with traditional tank heaters, resulting in superior energy efficiency for point-of-use or light industrial applications.
Performance & Electrical Specifications
The CESPLUS-015-240 is precision-engineered for high-voltage commercial environments, ensuring reliable thermal performance for sanitation, laboratory, and food service needs.
- Power Output: 15.00 kW at 240V.
- Amperage: 36.08 Amps.
- Breaker Requirement: 40A (3-Pole).
- Temperature Rise Capability:
- 102°F rise at 1 gpm.
- 51°F rise at 2 gpm.
- 34°F rise at 3 gpm.
- 26°F rise at 4 gpm.
- Activation Rate: Operates with a minimum flow rate of just 0.7 gpm (2.7 l/m), ensuring reliable activation with high-efficiency, low-flow fixtures.
- Maximum Flow Rate: Capable of supporting facility demands up to 10.6 gpm at 60 psi.
Advanced Industrial Engineering
- 316L Stainless Steel Heat Exchanger: Constructed with a high-grade 316L stainless steel heat exchanger to ensure maximum durability and resistance to corrosive water conditions in industrial settings.
- Precision Temperature Control: Features an adjustable temperature range from 60°F to 90°F (16°C to 32°C), with granular increments of 1°F (1°C) for exacting process requirements.
- Robust Enclosure Protection: The unit comes standard with a NEMA 3 enclosure. For more demanding environments, optional NEMA 4 and NEMA 4X (Stainless Steel) enclosures are available to protect against wash-down or corrosive atmospheres.
- Industrial Pressure Rating: Designed to operate reliably within a pressure range of 4 to 145 psi (0.28 to 10 bar).
Safety & Quality Compliance
- Safety Certifications: ETL Listed and certified to ANSI/UL Std. 499; conforms to CAN/CSA Std. C22.2 No. 88.
- Made in the USA: Proudly manufactured in the United States to ensure the highest standards of quality control and material sourcing.
- Industrial Warranty: Backed by a 6-year warranty against leakage and a 2-year warranty against defects in workmanship and materials.
Upgrade your commercial facility with the high-performance 3-phase power of the Stiebel Eltron CESPLUS-015-240. Secure the best price or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical guidance.
Download the C Series Commercial Options List
