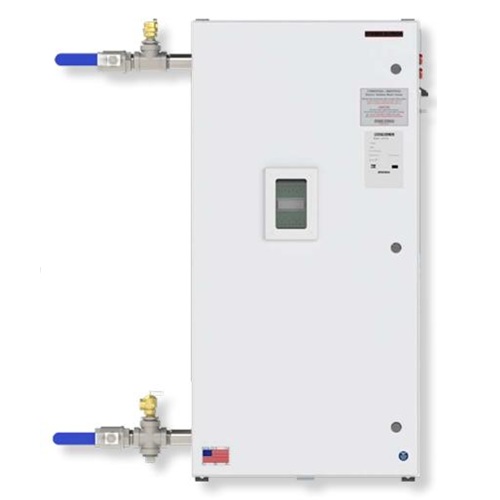

Stiebel Eltron CES Plus 120 kW (480V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CES Plus 120 kW (480V Delta) is a heavy-duty industrial thermal powerhouse, engineered for maximum performance in high-demand commercial environments utilizing 480V 3-phase Delta electrical service. Identified by part number CESPLUS-120-480, this unit represents one of the most robust on-demand water heating solutions available, delivering a massive 120.00 kW of instantaneous power. Designed to eliminate the operational costs and space requirements of traditional storage tanks, it provides a continuous, endless supply of hot water for high-volume facilities while maintaining a compact, space-efficient footprint.
Performance & Electrical Specifications
The CESPLUS-120-480 is optimized for peak thermal output in specialized high-voltage environments, making it the definitive choice for heavy industrial manufacturing, high-capacity sanitation, and massive food service operations.
- Power Output: 120.00 kW at 480V.
- Amperage: 144.34 Amps.
- Breaker Requirement: 175A (3-Pole).
- Temperature Rise Capability:
- 819°F rise at 1 gpm.
- 409°F rise at 2 gpm.
- 273°F rise at 3 gpm.
- 205°F rise at 4 gpm.
- 164°F rise at 5 gpm.
- Activation Rate: Features an ultra-low minimum activation threshold of 0.7 gpm (2.7 l/m), ensuring precision heating even when utilized with high-efficiency fixtures.
- Maximum Flow Rate: Engineered to support substantial infrastructure demands with a flow capacity of up to 10.6 gpm at 60 psi.
Advanced Industrial Engineering
- 316L Stainless Steel Heat Exchanger: The internal fluid paths are constructed from premium 316L stainless steel, offering the highest level of resistance to corrosion, pitting, and scale buildup in aggressive industrial water conditions.
- Precision Temperature Management: Offers a user-adjustable temperature range from 60°F to 90°F (16°C to 32°C), with granular adjustments in 1°F (1°C) increments to meet exacting process or safety requirements.
- Rugged Enclosure Options: Comes standard in a NEMA 3 enclosure. For facilities requiring wash-down protection or resistance to highly corrosive atmospheres, optional NEMA 4 and NEMA 4X (Stainless Steel) enclosures are available.
- Industrial Pressure Rating: Built to perform reliably within a wide operating pressure range of 4 to 145 psi (0.28 to 10 bar).
Quality Assurance & Compliance
- Safety Certifications: ETL Listed to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No. 88.
- Made in the USA: Proudly manufactured in the United States, ensuring superior build quality and adherence to strict testing standards.
- Comprehensive Warranty: Includes a 6-year warranty against leakage and a 2-year warranty against defects in materials and workmanship.
Equip your facility with the maximum power and industrial efficiency of the Stiebel Eltron CESPLUS-120-480. Secure the best market pricing or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical guidance.
Download the C Series Commercial Options List
