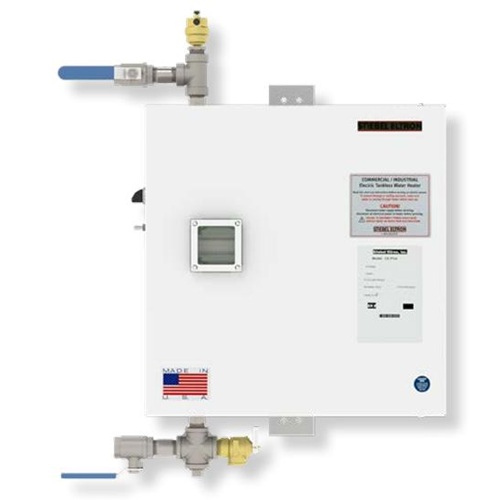

Stiebel Eltron CES Plus 12 kW (480V Wye) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CES Plus 12 kW (480V Wye) is a high-efficiency, industrial-grade tankless water heater specifically engineered for commercial and industrial facilities utilizing 480V 3-phase Wye electrical service. This model (Part Number: CESPLUS-012-480Y) delivers 13.50 kW of instantaneous heating power, providing a reliable and endless supply of hot water for demanding professional applications. By heating water on demand, it eliminates the substantial standby energy losses associated with traditional storage tanks, offering an optimized thermal solution with a significantly reduced footprint.
Performance & Electrical Specifications
The CESPLUS-012-480Y is designed for high-voltage efficiency, allowing for a lower amperage draw while maintaining robust thermal output for sanitation and process heating.
- Power Output: 13.50 kW at 480V.
- Amperage: 16.24 Amps.
- Breaker Requirement: 20A (3-Pole).
- Temperature Rise Capability:
- 92°F rise at 1 gpm.
- 46°F rise at 2 gpm.
- 31°F rise at 3 gpm.
- 23°F rise at 4 gpm.
- 18°F rise at 5 gpm.
- Activation Rate: Features an ultra-low minimum activation flow of 0.7 gpm (2.7 l/m).
- Maximum Flow Capacity: Engineered to support facility requirements up to 10.6 gpm at 60 psi.
Advanced Industrial Engineering
- 316L Stainless Steel Heat Exchanger: Every unit features a 316L stainless steel heat exchanger to provide maximum resistance to corrosion and ensure longevity in harsh industrial environments.
- Precision Temperature Management: Offers a user-adjustable temperature range from 60°F to 90°F (16°C to 32°C), with granular control in 1°F (1°C) increments for exacting technical requirements.
- Rugged Enclosure Options: Comes standard in a NEMA 3 enclosure. For environments requiring wash-down protection or resistance to highly corrosive atmospheres, optional NEMA 4 and NEMA 4X (Stainless Steel) enclosures are available.
- Operating Pressure: Reliably handles a wide pressure range from 4 to 145 psi (0.28 to 10 bar).
Quality Assurance & Compliance
- Safety Certifications: ETL Listed to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No. 88.
- Manufacturing: Proudly made in the USA to the highest standards of industrial build quality.
- Warranty Protection: Backed by a 6-year warranty against leakage and a 2-year warranty against defects in workmanship and materials.
Equip your facility with the high-voltage performance of the Stiebel Eltron CESPLUS-012-480Y. Secure the best market pricing or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical support.
Download the C Series Commercial Options List
