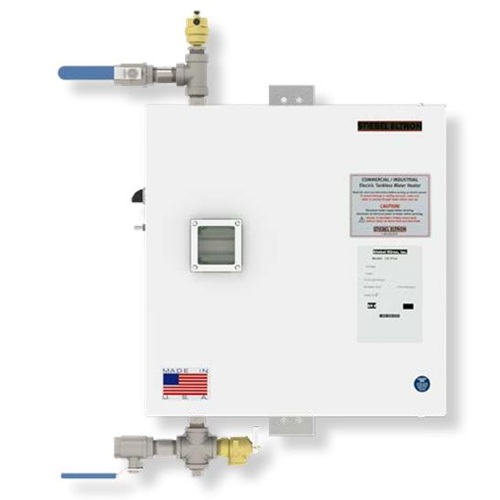

Stiebel Eltron CERO Plus 36 kW (240V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CERO Plus 36 kW (240V Delta) is an ultra-high-capacity industrial thermal solution engineered for the most demanding commercial environments. Identified by part number CEROPLUS-036-240, this unit represents the pinnacle of the CERO Plus series, delivering a massive 36.00 kW of heating power. Optimized for 240V 3-phase Delta electrical service, it provides an endless, instantaneous hot water supply, making it an ideal mission-critical upgrade for facilities looking to replace large, inefficient storage tanks or boiler systems with a compact, wall-mounted footprint.
Performance & Electrical Specifications
The CEROPLUS-036-240 is precision-engineered to deliver substantial thermal lift and high flow rates, making it the premier choice for large-scale industrial sanitation, commercial kitchens, and multi-fixture public restroom facilities.
- Power Output: 36.00 kW at 240V.
- Amperage: 86.60 Amps.
- Breaker Requirement: 100A (3-Pole).
- Temperature Rise Capability:
- 245°F rise at 1 gpm.
- 123°F rise at 2 gpm.
- 82°F rise at 3 gpm.
- 61°F rise at 4 gpm.
- Activation Rate: Features a highly sensitive 0.7 gpm (2.7 l/m) minimum activation threshold, ensuring the unit triggers immediately even with modern high-efficiency, low-flow plumbing fixtures.
- Maximum Flow Capacity: Robustly designed to support facility infrastructure with a sustained flow capacity of up to 10.6 gpm at 60 psi.
Advanced Industrial Engineering
- 316L Stainless Steel Heat Exchanger: The internal fluid paths and heating chambers are constructed from premium 316L stainless steel. This surgical-grade alloy provides superior resistance to corrosion, scaling, and thermal stress, ensuring long-term operational reliability even in aggressive or varied industrial water conditions.
- Precision Temperature Management: Equipped with an advanced digital interface that allows for user-adjustable setpoints between 60°F and 180°F (16°C to 82°C). Settings are adjustable in granular 1°F (1°C) increments to meet exacting process requirements or strict health department safety standards.
- Rugged Enclosure Options: Comes standard in a NEMA 3 enclosure, providing robust protection for internal components. For facilities requiring wash-down protection or resistance to highly corrosive atmospheres, optional NEMA 4 and NEMA 4X (Stainless Steel) enclosures are available.
- Industrial Pressure Rating: Built to perform reliably within a wide commercial operating pressure range of 4 to 145 psi (0.28 to 10 bar).
Quality Assurance & Compliance
- Safety Certifications: ETL Listed to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No. 88.
- Made in the USA: Proudly manufactured in the United States, adhering to the highest standards of engineering excellence and quality control.
- Comprehensive Warranty: Includes a 6-year warranty against leakage and a 2-year warranty against defects in materials and workmanship.
Maximize your facility’s operational capacity with the massive 36.00 kW power and industrial reliability of the Stiebel Eltron CEROPLUS-036-240. Secure the best market pricing or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical assistance.
Download the C Series Commercial Options List
