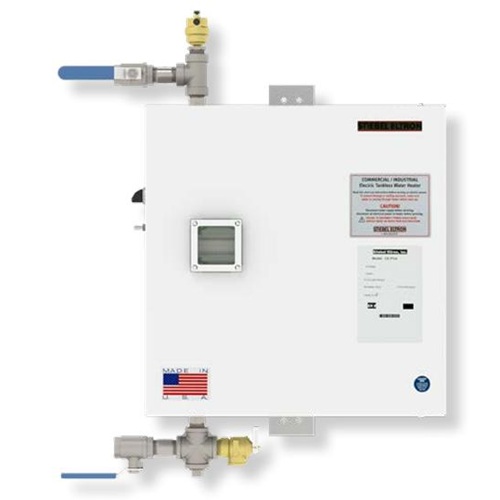

Stiebel Eltron CERO Plus 24 kW (575V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CERO Plus 24 kW (575V Delta) is a specialized industrial thermal solution engineered specifically for high-voltage infrastructure common in Canadian industrial markets and specific heavy-manufacturing sectors in the United States. Identified by part number CEROPLUS-024-575, this unit represents a pinnacle of electrical efficiency, delivering a formidable 24.00 kW of heating power while maintaining an exceptionally low current draw of just 24.09 Amps. By utilizing 575V 3-phase Delta service, facility managers can achieve massive thermal lift with minimal impact on their electrical distribution panels.
Performance & Electrical Specifications
The CEROPLUS-024-575 is precision-engineered for instantaneous hot water delivery in demanding technical environments, ranging from industrial processing plants to high-capacity commercial sanitation stations.
- Power Output: 24.00 kW at 575V.
- Amperage: 24.09 Amps.
- Breaker Requirement: 30A (3-Pole).
- Temperature Rise Capability:
- 164°F rise at 1 gpm.
- 82°F rise at 2 gpm.
- 55°F rise at 3 gpm.
- 41°F rise at 4 gpm.
- Activation Rate: Features a highly responsive 0.7 gpm (2.7 l/m) minimum activation threshold, ensuring the unit triggers immediately even with high-efficiency, low-flow plumbing fixtures.
- Maximum Flow Capacity: Robustly designed to support facility infrastructure with a sustained flow capacity of up to 10.6 gpm at 60 psi.
Advanced Industrial Engineering
- 316L Stainless Steel Heat Exchanger: The internal fluid paths are constructed from premium 316L stainless steel. This high-grade material offers the industry’s best resistance to corrosion, pitting, and scale accumulation, ensuring a long service life even in aggressive or varied industrial water conditions.
- Precision Temperature Management: Equipped with an advanced digital interface that allows for user-adjustable setpoints between 60°F and 180°F (16°C to 82°C). Settings are adjustable in granular 1°F (1°C) increments for exacting safety and process compliance.
- Rugged Enclosure Options: Comes standard in a NEMA 3 enclosure, protecting sensitive electronics from environmental debris. For wash-down areas or corrosive atmospheres, optional NEMA 4 and NEMA 4X (Stainless Steel) enclosures are available.
- Industrial Pressure Rating: Engineered to operate reliably within a wide commercial pressure range of 4 to 145 psi (0.28 to 10 bar).
Quality Assurance & Compliance
- Safety Certifications: ETL Listed to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No. 88.
- Made in the USA: Proudly manufactured in the United States, adhering to the highest standards of engineering excellence and quality control.
- Comprehensive Warranty: Includes a 6-year warranty against leakage and a 2-year warranty against defects in materials and workmanship.
Maximize your facility’s operational efficiency with the specialized industrial power of the Stiebel Eltron CEROPLUS-024-575. Secure the best market pricing or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical support.
Download the C Series Commercial Options List
