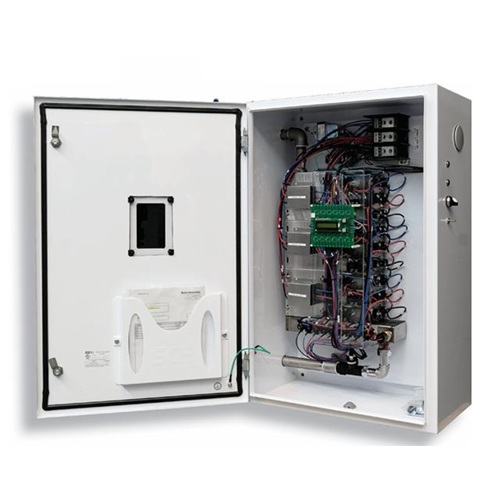

Stiebel Eltron CE Plus 36 kW (575V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CE Plus 36 kW (575V Delta) is an elite-tier industrial heating solution specifically engineered for Canadian industrial grids and specialized high-voltage facilities. Configured for 575V 3-phase Delta electrical systems, this model (Part Number: CE-Plus-036-575) provides an instantaneous and virtually limitless supply of hot water while maintaining a 99% energy efficiency rating. By eliminating the need for bulky storage tanks, it significantly reduces operational overhead and recovers valuable floor space in mechanical rooms.
Performance & Electrical Specifications
The CE Plus 36 kW utilizes high-voltage efficiency to provide exceptional temperature lifts even in high-demand environments.
- Power Output: 36.00 kW at 575V.
- Amperage: 36.15 Amps.
- Breaker Requirement: 40A (3-Pole).
- Temperature Rise Capability:
- 245°F rise at 1 gpm.
- 123°F rise at 2 gpm.
- 82°F rise at 3 gpm.
- 61°F rise at 4 gpm.
- Activation Threshold: Minimum activation flow of 0.7 gpm ensures compatibility with modern low-flow and high-efficiency fixtures.
- Maximum Flow Rate: Capable of supporting flows up to 10.6 gpm at 60 psi.
Advanced Industrial Engineering
- 316L Stainless Steel Construction: Every CE Plus unit features a 316L stainless steel heat exchanger and internal plumbing connections, offering maximum resistance to corrosion and thermal stress.
- Direct Coil™ Heating Technology: This proprietary system features heating elements that vibrate slightly during operation, physically preventing the buildup of limescale and mineral deposits to ensure consistent thermal transfer.
- Advanced Flow Control™: To maintain precise output temperatures, the integrated microprocessor automatically modulates water flow if facility demand exceeds the unit's 36 kW capacity.
- Environmental Protection: The unit is standard in a NEMA 3 enclosure. For wash-down areas or corrosive environments, optional NEMA 4 and 4X (Stainless Steel) enclosures are available.
- Multi-Level Safety: Features four independent levels of over-temperature protection, an automatic internal air vent, and a lead-free brass pressure relief valve.
Compliance & Quality Assurance
- Safety Certifications: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No.88.
- Lead-Free Certified: Tested and certified by the WQA against NSF/ANSI/CAN 372.
- Robust Warranty: Protected by a 6-year warranty against leakage and a 2-year warranty on all parts and materials.
- Manufacturing: Proudly manufactured in the USA.
Equip your high-voltage facility with the efficiency of the Stiebel Eltron CE-Plus-036-575. Secure the best price or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical assistance.
Download the C Series Commercial Options List
