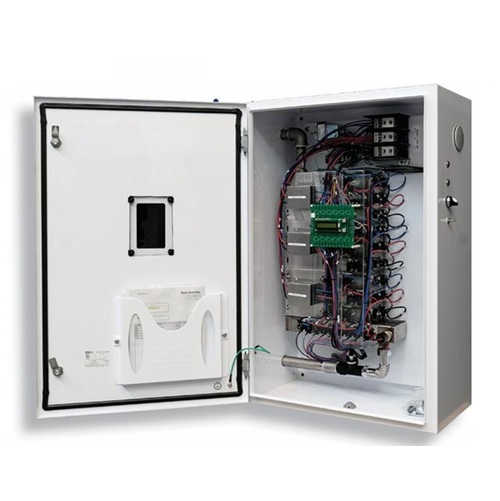

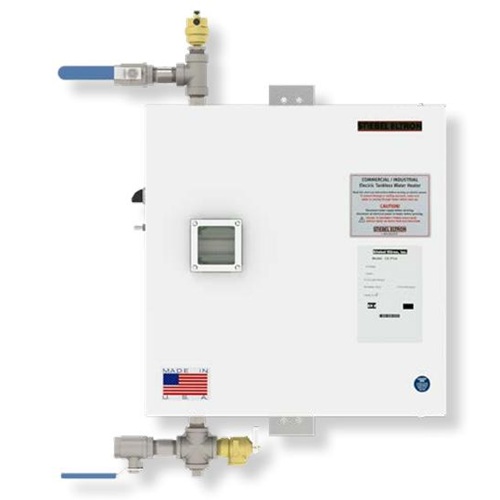

Stiebel Eltron CE Plus 15 kW (480V Wye) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CE Plus 15 kW (480V Wye) is a high-voltage, industrial-grade tankless water heater engineered for precision performance in commercial and industrial settings. Utilizing a 480V 3-phase Wye configuration, this model (Part Number: CE-Plus-015-480Y) provides an instantaneous and continuous supply of hot water. By operating at 99% energy efficiency, it effectively eliminates standby heat losses associated with traditional storage tanks.
Performance & Electrical Specifications
The CE Plus series is designed to handle the rigorous demands of industrial facilities, combining microprocessor-controlled precision with heavy-duty construction.
- Power Output: 16.65 kW at 480V.
- Amperage: 20.03 Amps.
- Breaker Requirement: 25A (3-Pole).
- Temperature Rise:
- 114°F rise at 1 gpm.
- 57°F rise at 2 gpm.
- 38°F rise at 3 gpm.
- Activation Rate: Ultra-low activation flow of 0.7 gpm, ideal for high-efficiency commercial handwashing stations.
- Max Flow Rate: High-capacity internal engineering supports flows up to 10.6 gpm at 60 psi.
Engineering & Durability
- 316L Stainless Steel Heat Exchanger: Features a premium 316L stainless steel heat exchanger and internal piping to provide maximum resistance to corrosion and thermal stress in demanding environments.
- Direct Coil™ Heating System: Utilizes a specialized heating element design that vibrates during operation to actively prevent limescale and mineral buildup, ensuring long-term reliability even in hard water conditions.
- Advanced Flow Control™: This exclusive technology maintains consistent output temperatures by automatically adjusting water flow if demand exceeds the unit's heating capacity.
- NEMA Rated Enclosures: Standardized in a NEMA 3 enclosure. Optional NEMA 4 and 4X enclosures are available for facilities requiring watertight protection or resistance to highly corrosive atmospheres.
- Comprehensive Safety: Equipped with four levels of over-temperature protection, an automatic air vent, and a lead-free brass pressure relief valve.
Compliance & Quality Assurance
- Standards: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No.88.
- Lead-Free Compliance: Tested and certified by the WQA against NSF/ANSI/CAN 372 for lead-free construction.
- Warranty: Protected by a 6-year leakage warranty and a 2-year warranty on all parts and materials.
- Origin: Proudly manufactured in the USA.
Secure the best price for your commercial infrastructure or request a professional volume quote today. Shop the Stiebel Eltron CE-Plus-015-480Y online at ProDryers or call 888-503-7937 for expert technical assistance.
