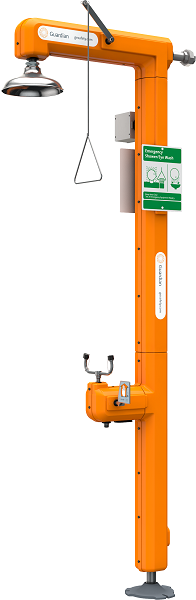

Guardian GFR3515 Heated Safety Station with Eyewash
Model GFR3515 Description
Electric heat-traced stations prevent freezing even in extreme conditions. Thermostat regulated units are heated by self-limiting heat-tracing cable wrapped around internal pipe. Units are intended for cold weather use down to -40°F.
- Alarm Option: Light and remote sensing capability.
- Heating Cable: Self-regulated with external termination guards. Thermostat activates when internal piping temperature falls below 75°F. FM, UL, and CSA approved for Class I, Division 2, Groups B, C, and D.
- Electrical System: Unit is fully wired at factory. Junction box and components rated for Class I, Division 2, Groups B, C, and D. Requires 120 VAC single phase power supply.
- Jacket/Insulation: UV-resistant orange ABS plastic with polyethylene foam insulation. Jacket sections secured with removable stainless steel screws for easy maintenance.
- Shower Head: 10" diameter stainless steel with 20 GPM flow control.
- Shower Valve: 1" IPS chrome-plated brass stay-open ball valve. US-made with brass ball and PTFE seals. Includes stainless steel actuating arm and 29" stainless steel pull rod.
- Spray Head Assembly: Freeze-resistant with float-off dust covers and internal flow control.
- Eyewash Valve: 1/2" IPS chrome-plated brass three-way self-draining stay-open ball valve. US-made with brass ball and PTFE seals. Includes 1/2" NPT port to drain water from spray heads after use.
- Pipe and Fittings: Schedule 40 Type 304 stainless steel.
- Supply: 1-1/4" NPT female bottom inlet.
- Sign: ANSI-compliant identification sign.
- Quality Assurance: Factory tested prior to shipment. Ships fully assembled and crated.
Spec Sheet Links
Available Options (Call 888-503-7937 for fast help)
- [HV] 240 volt heat tracing.
- [GRN] Green ABS plastic shower head and shell.
- [TL] Heat trace indicator light.
- [SP] Scald protection valve.
- [FP] Freeze protection valve.
- [ALG] Green LED area light.
- [PS] Magnetically activated proximity (MAP) switch.
- [G6040] Thermostatic mixing valve to blend hot and cold water to deliver tepid water. Valve has flow capacity of 50 gallons (189 liters) per minute at 30 PSI (2.1 bar) pressure drop. Valve can be used to supply emergency shower or combination safety station. Depending on water supply size and pressure, valve can supply multiple units. Note: Must be installed in a non-freezing environment.
