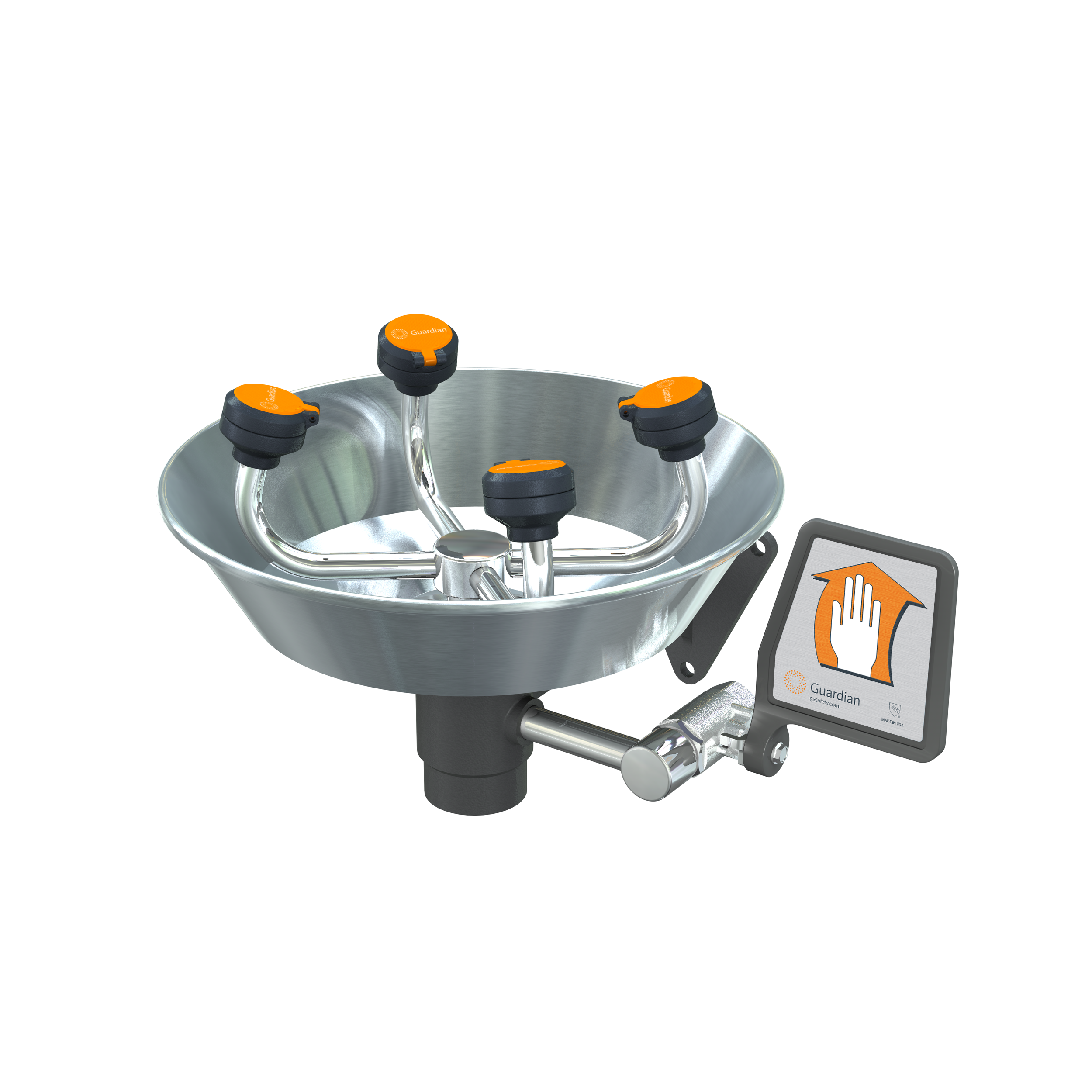

Guardian G1724 WideArea™ Eye/Face Wash

Model G1724 Description

WideArea™ eye/face wash for wall mounting. Four GS-Plus™ spray-type outlet heads deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face.

• Spray Head Assembly: Four GS-Plus™ spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
• Valve: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals.
• Bowl: 11-1/8" diameter stainless steel.
• Mounting: Heavy duty cast aluminum wall bracket with corrosion resistant powder coated finish.
• Supply: 1/2" NPT female inlet.
• Waste: 1-1/4" NPT female outlet.
• Sign: ANSI-compliant identification sign.
• Quality Assurance: Unit is completely assembled and water tested prior to shipment.

Spec Sheet Links

Download the G1724 Eye/Face Wash Spec Sheet

Available Options (Call 888-503-7937 for fast help)

• [HS] Auxiliary hand-held drench hose for rinsing eyes, face or body.
• [GRN] Green ABS plastic bowl.
• [YEL] Yellow ABS plastic bowl.
• [T] Chrome plated brass tailpiece and trap with 1-1/2" IPS waste connection.
• [TP] 1-1/2" OD chrome plated brass tailpiece.
• [G6020] Thermostatic mixing valve to blend hot and cold water to deliver tepid water. Valve has flow capacity of 13 gallons (49 liters) per minute at 30 PSI (2.1 bar) pressure drop. Valve can be used to supply emergency eyewash, eye/face wash or drench hose unit. Depending on water supply size and pressure, valve can supply multiple units.
