Eemax AP064208-EFD-N4 SafeAdvantage Tankless Water Heater for Emergency Shower/Eyewash Combo
*All Eemax three phase units are custom made to order and as such, are non-returnable and non-refundable. Check your electrical supply, making sure all criteria for operating your Eemax water heater are met.*
Features
- 90°F max. output temperature
- Fully Modulating - Predictive control algorithm and diverse safety features ensures conformity to ANSI Z358.1 tepid water without additional mixing valves (check local codes)
- Fast response rate eliminates the requirement for any additional hot water purge system (no drainage required)
- T&P not required per UL499 - Check local codes
- Thermo-Optical Sensor for infrared element monitoring
- Field programmable, updatable firmware, and adjustable turn-on
- LCD display and control with built in diagnostics

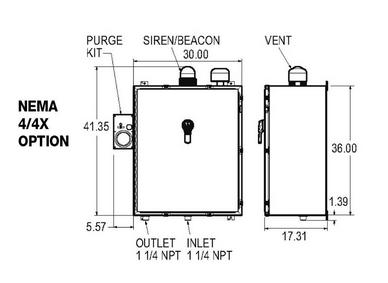

- Standard model includes NEMA 4 cabinet; alternative cabinets are available for upgrade
NEMA Cabinet Options
- N4 - Powder coated steel
- N4X - Corrosion-resistant 304 stainless steel
Performance Specifications
- GPM Turn On: 2.5
- Minimum Operating Temp: 60
- Max Operating Temp: 90
- Minimum Operating Pressure: 25 PSI
- Max Pressure Rating: 150 PSI
Electrical Specifications
- Power: 64kW
- Volts: 208V
- Phase: Three
- Amperage: 178/phase
- Recommended Wire Size: 3/0AWG
