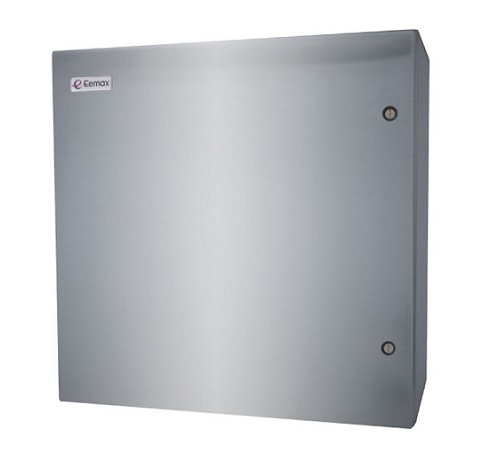

Eemax AP063480-EFD-N4 SafeAdvantage Electric Tankless Water Heater for Emergency Shower/Eyewash Combo with NEMA 4 Enclosure, 63kW, 480V, Three Phase, 76 Amps, 2.5 GPM Turn On

Call for Quote

Please call for exact lead time

SKU:
EE-AP063480-EFD-N4
Availability:
Available to Order

QUOTE ONLY ITEM, PLEASE CALL 888-503-7937. ITEM CANNOT BE ORDERED ONLINE.

Please call for exact lead time

SKU:
EE-AP063480-EFD-N4
Availability:
Available to Order
QUOTE ONLY ITEM, PLEASE CALL 888-503-7937. ITEM CANNOT BE ORDERED ONLINE.

Eemax AP063480-EFD-N4 SafeAdvantage Tankless Water Heater for Emergency Shower/Eyewash Combo

*All Eemax three phase units are custom made to order and as such, are non-returnable and non-refundable. Check your electrical supply, making sure all criteria for operating your Eemax water heater are met.*

Features

  • 90°F max. output temperature
  • Fully Modulating - Predictive control algorithm and diverse safety features ensures conformity to ANSI Z358.1 tepid water without additional mixing valves (check local codes)
  • Fast response rate eliminates the requirement for any additional hot water purge system (no drainage required)
  • T&P not required per UL499 - Check local codes
  • Thermo-Optical Sensor for infrared element monitoring
  • Field programmable, updatable firmware, and adjustable turn-on
  • LCD display and control with built in diagnostics
  • Standard model includes NEMA 4 cabinet; alternative cabinets are available for upgrade

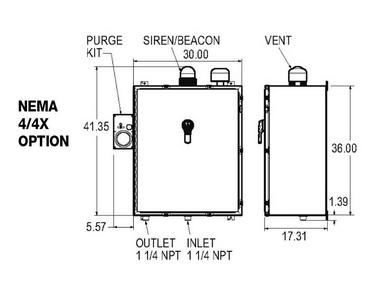

NEMA Cabinet Options

  • N4 - Powder coated steel
  • N4X - Corrosion-resistant 304 stainless steel

Performance Specifications

  • GPM Turn On: 2.5
  • Minimum Operating Temp: 60
  • Max Operating Temp: 90
  • Minimum Operating Pressure: 25 PSI
  • Max Pressure Rating: 150 PSI

Electrical Specifications

  • Power: 63kW
  • Volts: 480V
  • Phase: Three
  • Amperage: 76/phase
  • Recommended Wire Size: 3 AWG

Spec Sheet
Installation Guide
Warranty
