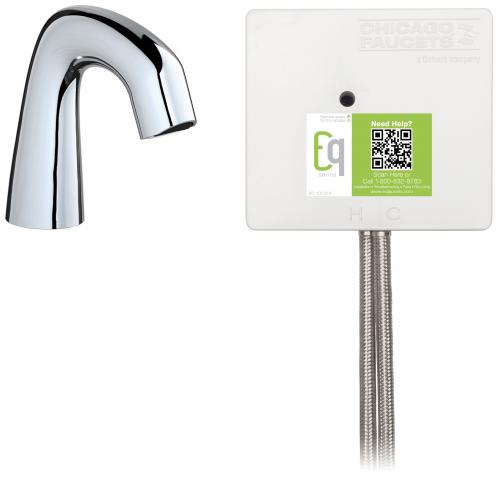

Chicago Faucets EQ-A11C-63ABCP Touch Free Electronic Faucet

The Chicago Faucets EQ-A11C-63ABCP is a commercial-grade touchless electronic faucet system built to deliver maximum green building water conservation, anti-scald protection, and long-term infrastructure reliability. Constructed from premium low-lead ECAST® solid cast brass with a polished chrome finish, this architectural EQ Curved Spout provides superior durability and easy cleanup in demanding public spaces. Designed for dual-supply plumbing systems, the included under-sink control box assembly comes equipped with an integrated concealed thermostatic mixing valve (TMV). The internal TMV is fully certified to ASSE 1070 standards, automatically blending incoming hot and cold water supplies beneath the deck to actively protect public users from accidental scalding.

To achieve maximum LEED points and strict environmental compliance, this "C" series model features an ultra-high-efficiency, pressure-compensating 0.35 GPM non-aerating spray outlet. This configuration provides a clean flow that reduces water consumption by an additional 30% compared to standard 0.5 GPM models. Powered by an integrated Long Term Power System (LTPS), the fixture utilizes a specialized lithium-ion long-life power cell pack that provides 15+ years of maintenance-free operation. This entirely removes the continuous labor costs of standard battery changes without requiring structural AC electrical line hardwiring during installation. It functions reliably across static pressures between 20 and 125 PSI. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Chicago Faucets supplier.

Features:

• EQ® Curved spout, polished chrome, 0.35 GPM (EQ-A11C-KJKABCP)
• Pressure compensating Econo-Flo™ non-aerating spray outlet, 0.5 GPM (243.145.AB.1)
• EQ® Series long life battery pack with adapter cable (243.869.00.1)
• EQ® control box assembly with concealed thermostatic mixing valve (EQ-63KJKABNF)
• Concealed thermostatic mixing valve included
• Single-hole
• Includes built-in ASSE 1070 thermostatic mixing valve concealed within control box
• 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
• Long Term Power System (LTPS) provides maintenance-free power for 15 years or more, depending on usage
• Dual supply for hot and cold water; flexible supply hoses included
• Polished chrome

Warranty:

• Lifetime Limited Faucet Warranty
• 1-Year Limited Finish Warranty
• 5-Year Limited Mechanical Warranty
• 3-Year Limited Electronics and Solenoid Warranty

Spec Sheet
Installation Instructions
Long Term Power System Brochure
