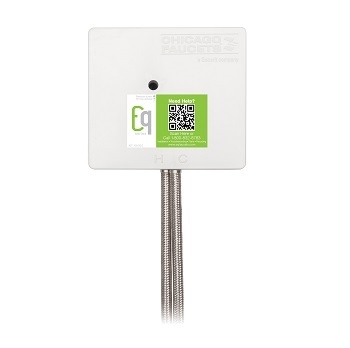

Chicago Faucets EQ-13KJKABNF EQ Control Box Assembly with Concealed Thermostatic Mixing Valve

Features:

• Dual Supply for Hot and Cold Water Service
• Operating static pressure: 20-125 PSI (138-862 kPa)
• Minimum static pressure for mixing: 30 PSI (207 kPa)
• Cold water inlet temperature range: 39-80^oF (4-27^oC)
• Hot water inlet temperature range: 120-180^oF (49-82^oC)
• Mixed water temperature range: 80-120^oF (27-49^oC)
• Accurate within +/- 3^oF (1.7^oC)
• Adjustable temperature control
• Maximum pressure differential between hot and cold water supplies: 20%
• Maximum temperature differential between hot and cold water supplies: 20^oF (9^oC)
• Powered by 4 "AA" Alkaline Batteries (Included)
• Combine with EQ Spout assemblies (sold separately)
• Includes integrated control box: housing, solenoid valve, power source, mixing element, hose(s) to supply stop(s); mounting hardware
• Installation should be done in accordance with local plumbing codes.
• ECAST?« construction

Warranty:

• 5-Year Limited Mechanical Warranty
• 3-Year Limited Electronics and Solenoid Warranty

Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Chicago Faucets supplier.

Chicago Faucets EQ-13KJKABNF Spec Sheet
