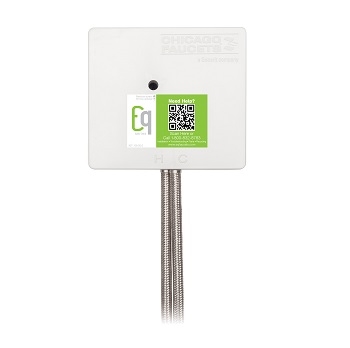

Chicago Faucets EQ-12KJKABNF EQ Control Box Assembly with Concealed Mechanical Mixing Valve
Features:
- Dual Supply for Hot and Cold Water Service
- Operating static pressure: 20-125 PSI (138-862 kPa)
- Minimum static pressure for mixing: 30 PSI (207 kPa)
- Cold water inlet temperature range: 39-80oF (4-27oC)
- Hot water inlet temperature range: 120-180oF (49-82oC)
- Mixed water temperature range: up to 180oF (82oC)
- Adjustable temperature control
- Integral check valves for cross-flow protection
- Powered by 4 "AA" Alkaline Batteries (Included)
- Combine with EQ Spout assemblies (sold separately)
- Includes integrated control box: housing, solenoid valve, power source, mixing element, hose(s) to supply stop(s); mounting hardware
- Installation should be done in accordance with local plumbing codes.
- ECAST?« construction
