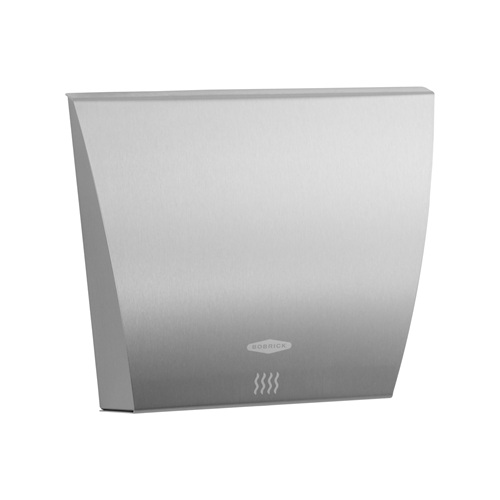

Bobrick B-7125 InstaDry Automatic High Speed Hand Dryer
Bobrick B-7125 surface-mounted high-speed hand dryer shall have an energy consumption of only 200 watts. Unit shall have 18-gauge (1.2mm) thick Type-304 stainless steel cover with #4 satin finish vertical grain. The slim profile cover shall project no more than 3 7/8" (98mm) from the finished face of wall to comply with accessible design guidelines (including ADAAG in the U.S.A.). Dryer shall be universal, to accommodate voltages between 110-240V. Dryer shall be secured to concealed mounting bracket with vandal-resistant screws. Electronic sensor automatically turns dryer on when hands are held under air-outlet opening and across path of sensor. Dryer turns off automatically when hands are removed. Sensor automatically shuts dryer off approximately 85 seconds after dryer turns on if an inanimate object is placed across air-outlet opening. After object is removed, electronic sensor automatically resets itself and dryer operates normally. Unit is cULus listed and is CE marked. Dryer has a limited 5-year warranty on all parts.
Spec Sheet
Installation Instructions
Product Overview
The Bobrick B-7125 InstaDry Automatic High Speed Hand Dryer is designed for fast and efficient hand drying in high-traffic commercial environments. Its sleek, surface-mounted design offers a space-saving solution while ensuring accessibility compliance. With a powerful yet energy-efficient 200-watt motor, this hand dryer provides a consistent and effective drying experience.
Key Features
- Designed for high traffic areas, ensuring quick hand drying for multiple users.
- Energy-efficient operation helps reduce electricity costs.
- Durable stainless steel construction stands up to everyday wear and tear.
- Easy maintenance with accessible component design for timely service.
- Meets ADA compliance, addressing the needs of all users.
