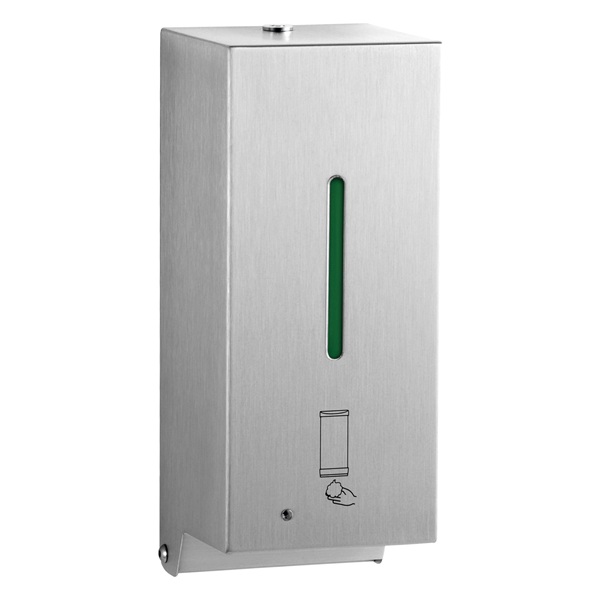

Bobrick B-2013 Wall-Mounted Automatic Foam Soap & Sanitizer Dispenser, Satin Finish, 34-fl oz
The Bobrick B-2013 provides touch-free dispensing of foam hand soap or foam hand sanitizer in commercial restrooms and hand hygiene areas. Its Type 304, 18-gauge stainless steel housing features a satin finish, seam-welded construction, and concealed mounting for a clean, professional appearance. A refillable 34-fl oz (1-liter) plastic container accepts compatible bulk foam products, providing flexibility when selecting refill supplies.
The sensor-activated pump offers three adjustable dispense settings: 0.5 mL, 0.9 mL, or 1.3 mL. A clear refill window and LED indicators help staff monitor product levels and battery status, while the lockable, hinged housing provides convenient access for refilling and maintenance. BobrickSMART compatibility supports connected monitoring when activated with the required data subscription and gateway package, sold separately.
Key Features
- Touch-free operation: Automatically dispenses when a hand is placed beneath the outlet near the sensor.
- Satin stainless steel: Type 304, 18-8, 18-gauge housing with seam-welded construction and well-defined edges and corners.
- Refillable bulk container: Holds 34-fl oz (1 liter) of compatible foam hand soap or foam hand sanitizer.
- Adjustable dispensing: Select 0.5 mL, 0.9 mL, or 1.3 mL per activation. Factory setting is 1.3 mL.
- Foam-product compatibility: Accepts suitable foam hand soaps and foam hand sanitizers with viscosities ranging from 1 to 100 cP.
- LED status indicators: Signal activation, low battery, and low soap or sanitizer at approximately 25% remaining capacity.
- Visible fill level: A clear indicator window allows quick checks of the remaining product.
- Lockable service access: Flush-mounted tumbler lock includes a CAT-74 key. A cabinet swing limiter prevents the open housing from contacting the wall or counter.
- Flexible power options: Operates on four D-cell alkaline batteries, not included, or optional A/C adapter 2012-132 with USB-C output, sold separately.
- BobrickSMART compatible: Supports monitoring of soap level, battery level, and usage with a separately purchased data subscription and gateway package.
Dimensions & Installation
Overall dimensions: 6" W × 10-1/2" H × 3-29/32" D (152 × 267 × 99 mm).
The B-2013 surface mounts to the wall using the included screws and wall plugs. Maintain 7" of clearance between the sensor and the surface below; a 6" minimum is permitted above a non-reflective countertop. ADA compliance depends on installation at the appropriate sensor height and reach depth.
Refill & Maintenance Guidance
Use a compatible bulk product formulated for foam dispensing and follow the product-type identification on the container lid. Fill only to the maximum fill line and close the cabinet cover before operating the dispenser. The replaceable container and foam pump assembly allows servicing as needed.
