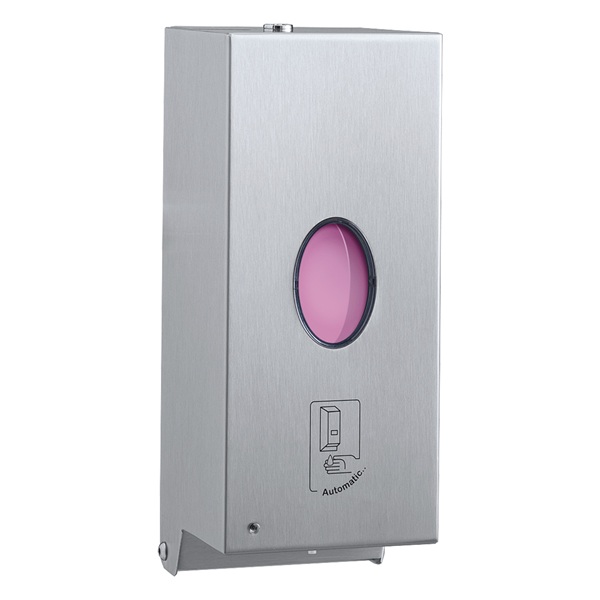

Bobrick B-2012 Wall-Mounted Automatic Liquid Soap & Sanitizer Dispenser in Satin Stainless Steel
The Bobrick B-2012 provides touch-free dispensing of liquid hand soap or liquid/gel hand sanitizer in commercial restrooms and hand hygiene areas. Its Type 304, 18-gauge stainless steel housing features a satin finish, seam-welded construction, and concealed mounting for a clean, professional appearance. The refillable 34-fl oz (1-liter) plastic container accepts compatible bulk products, providing flexibility when selecting soap or sanitizer supplies.
A sensor-activated pump offers three adjustable dispense settings: 0.5 mL, 0.9 mL, or 1.3 mL. A clear viewing window and LED indicators help staff check product levels and battery status, while the lockable, hinged housing provides convenient access for refilling and maintenance. BobrickSMART compatibility supports connected monitoring when activated with the required subscription and gateway package, sold separately.
Key Features
- Touch-free operation: Automatically dispenses when a hand is placed beneath the outlet near the sensor.
- Durable stainless steel: Type 304, 18-8, 18-gauge construction with a satin finish and seam-welded edges and corners.
- Refillable bulk container: Holds 34-fl oz (1 liter) of compatible liquid hand soap or liquid/gel hand sanitizer.
- Adjustable dispensing: Select 0.5 mL, 0.9 mL, or 1.3 mL per activation. Factory setting is 1.3 mL.
- Compatible viscosity range: Dispenses suitable liquid soaps and liquid/gel sanitizers ranging from 1 to 10,000 cP.
- Status indicators: LEDs signal activation, low battery, and low soap or sanitizer at approximately 25% remaining capacity.
- Visible fill level: A clear refill indicator window allows quick visual checks.
- Lockable service access: Flush-mounted tumbler lock includes a CAT-74 key. A cabinet swing limiter prevents the open housing from contacting the wall or counter.
- Flexible power options: Operates on four D-cell alkaline batteries, not included, or optional A/C adapter 2012-132 with USB-C output, sold separately.
- BobrickSMART compatible: Supports monitoring of soap level, battery level, and usage with a separately purchased data subscription and gateway package.
Dimensions & Mounting
Overall dimensions: 6" W × 10-1/2" H × 3-29/32" D (152 × 267 × 99 mm).
The B-2012 surface mounts to the wall using the included mounting screws and wall plugs. Maintain 7" of clearance between the sensor and the surface below; a 6" minimum is permitted above a non-reflective countertop. Install at the appropriate sensor height and reach depth to meet applicable accessibility requirements. ADA compliance depends on proper placement and installation.
