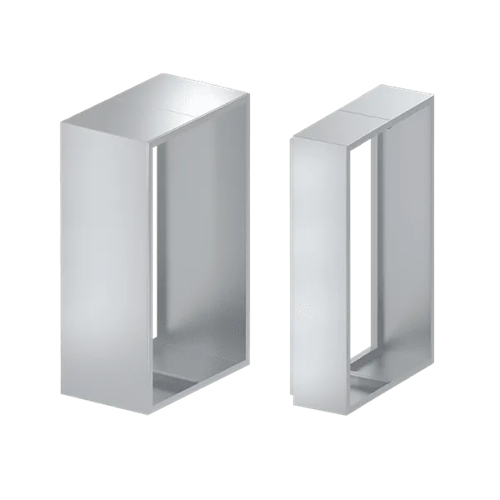

ASI 7457-SR2 Semi-Recessed Mounting Collar
This 2-inch adapter collar is intended for semi-recessed installation with the 0457 cabinet. The SR2 size accommodates up to a 2-inch difference between cabinet depth and available wall depth. The collar is made to the cabinet's width and height and fits under the cabinet's 1/4-inch return.
Fabricated from 22-gauge Type 304, 18-8 alloy stainless steel with a satin finish, the collar has no seams on its vertical sides or corners. A PVC protective film is provided for shipment and is removed after installation. Once installed, the collar is non-removable.
Installation
Slide the collar over the rear of the cabinet and under its 1/4-inch return. Place the collar-and-cabinet assembly into the normal rough wall opening; use the standard mounting hardware supplied with the cabinet.
