ASI 7457-SM SM Collar for Model 0457

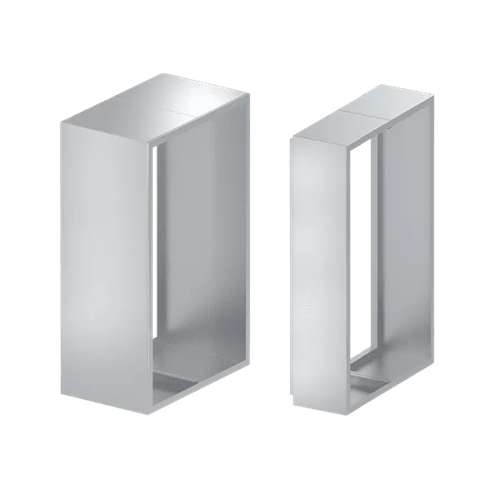

The ASI 7457-SM is a stainless steel adapter collar for semi-recessed installation with Model 0457. It is intended for walls without enough depth for full recessing; the collar fits snugly under the cabinet’s 1/4-inch return and is non-removable after installation.
Collar details
- Fabricated from Type 304, 18-8 alloy stainless steel, No. 22 gauge.
- Exposed surfaces have a satin finish.
- No seams on the vertical sides or corners.
- A PVC protective film covers the collar for shipment and is removed after installation.
Installation
Slide the collar over the rear of the cabinet and under its 1/4-inch return. Place the collar-and-cabinet assembly into the normal rough wall opening, using the standard mounting hardware supplied with the cabinet. The collar is sized to the mating cabinet; after installation, it cannot be removed.
