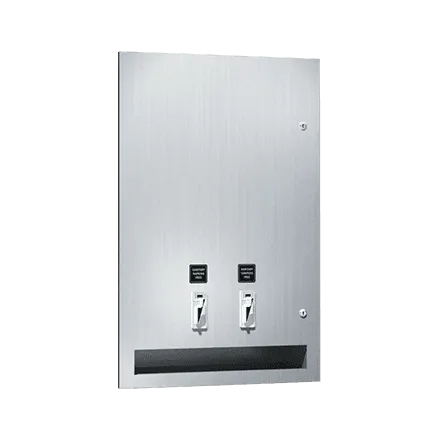

ASI 64684-25 Recessed Dual Napkin and Tampon Vendor
The ASI 64684-25 is a recessed dual vendor configured for 25¢ operation, dispensing 15 napkins and 23 tampons independently. Choose the -50 version for 50¢ operation or -F for free operation.
Specifications and product fit
- Construction: Type 304 stainless steel with a satin finish; two tumbler locks secure the door, and the coin box has a separate keyed lock.
- Capacity: 15 napkins and 23 tampons.
- Compatible product sizes: Single, cardboard-boxed napkins measuring 4-1/4" × 3" × 1-1/8"; cardboard-cylinder tampons measuring 3/4" diameter × 5-1/4" long.
- Rough opening: Minimum 16" W × 26" H × 4-1/4" D. Unit dimensions are 17-1/4" W × 27-1/4" H × 4-1/2" D.
- Mounting: Recess into the wall using #10 self-threading screws, supplied by others. Manufacturer guidance for maximum usability and 2010 ADA Accessibility Standards places the coin slot 38–54" above the finished floor; this is installation guidance, not a compliance guarantee.
When either product is depleted, an indicator displays the empty condition and blocks the coin slot. Refill manually through the locked door as needed; track weights must be used for positive feed.
