ASI 0620-1828 Chan-Lok Plate Glass Mirror, 18" W x 28" H

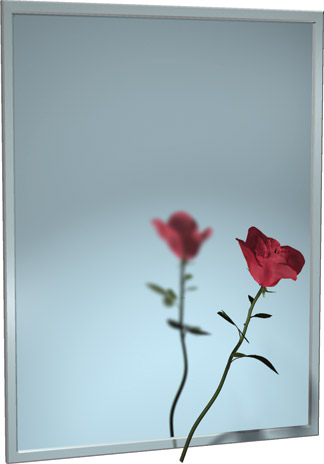

The ASI 0620-1828 is a surface-mounted 18" x 28" plate glass mirror with a satin-finish Type 304 stainless steel Chan-Lok frame. Its one-piece roll-formed channel encases the mirror and backing, forming tight mitered corners. Theft-resistant screws secure the mirror to wall brackets.
Frame and mounting details
- Plate glass mirror with a one-piece, roll-formed stainless steel channel frame.
- Frame: 20-gauge Type 304 (18-8) stainless steel with a satin finish.
- Install the wall brackets level and plumb using #8 or #10 pan-head screws (by others).
- The locking screw is supplied separately, taped to the mirror back; start it before hanging the mirror, then tighten it at the bottom.
For installation guidance related to the 2010 ADA Accessibility Standards and ABA Standards 2015, the manufacturer specifies that the bottom edge of the reflecting surface be no higher than 40" above the finished floor.
