Zurn Z5755.205.00 Omni-Flo Top Spud Urinal with EcoVantage 0.125 gpf High Efficiency Urinal Flush Valve
Omni-Flo™ Top Spud Urinal Vitreous china, 0.125 gpf [0.5 Lpf] to 1.0 gpf [3.8 Lpf], wall hung, washdown urinal complete with asymmetric backwall resulting in reduced splash back, high efficiency washdown flushing action, oversized footprint to make retrofit easy, 3/4" top spud, 2" I.P.S. outlet flange and rubber gasket with integral trap, 14" extended rim for handicap compliance when installed at proper height, vandal resistant outlet strainer included, and concealed universal retrofit wall bracket.

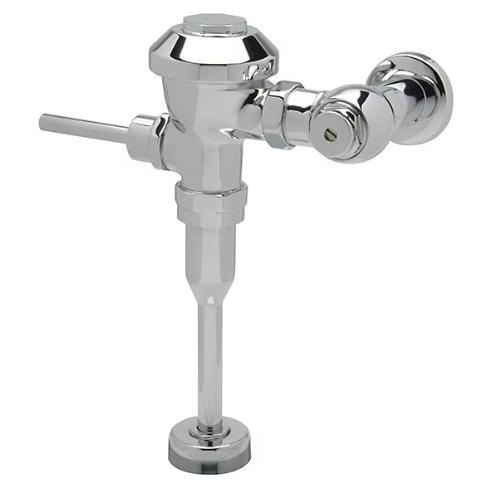

EcoVantage 0.125 gpf High Efficiency Urinal Flush Valve:
Exposed high efficiency flushometer valve designed to perform to industry standards with as little as 0.125 gallons per flush. Valve is operated by an infrared convergence- type proximity sensor with smart technology, powered by a 4 AA long life batteries, furnished with a vandal- resistant chrome- plated cast brass valve body, chloramine resistant internal seals, manual over ride button and reversible cover. Complete with high back pressure vacuum breaker, one piece hex coupling nut, adjustable tailpiece, spud coupling and flange for top spud connection. Control stop has internal siphon-guard protection, vandal-resistant stop cap, sweat solder kit and a cast wall flange with setscrew.
Call 888-50-Dryer for more information.
Product Overview
The Zurn Z5755.205.00 Omni-Flo Automatic Ultra Low Flow ADA Urinal is designed for optimal efficiency and ease of use in high-traffic commercial restrooms. With a unique design that minimizes splash back and promotes effective flushing, this urinal is a practical choice for facilities aiming to control water usage while offering a compliant solution for ADA standards.
Key Features
- Low flow rate of 0.125 GPF, suitable for facilities seeking to reduce water consumption.
- Ergonomic 14" extended rim ensures accessibility in compliant installations.
- Vandal-resistant design includes a durable chrome-plated brass valve body for increased security.
- Asymmetric backwall design decreases splash back, enhancing user experience.
- Concealed universal retrofit wall bracket facilitates easy installation and maintenance.
