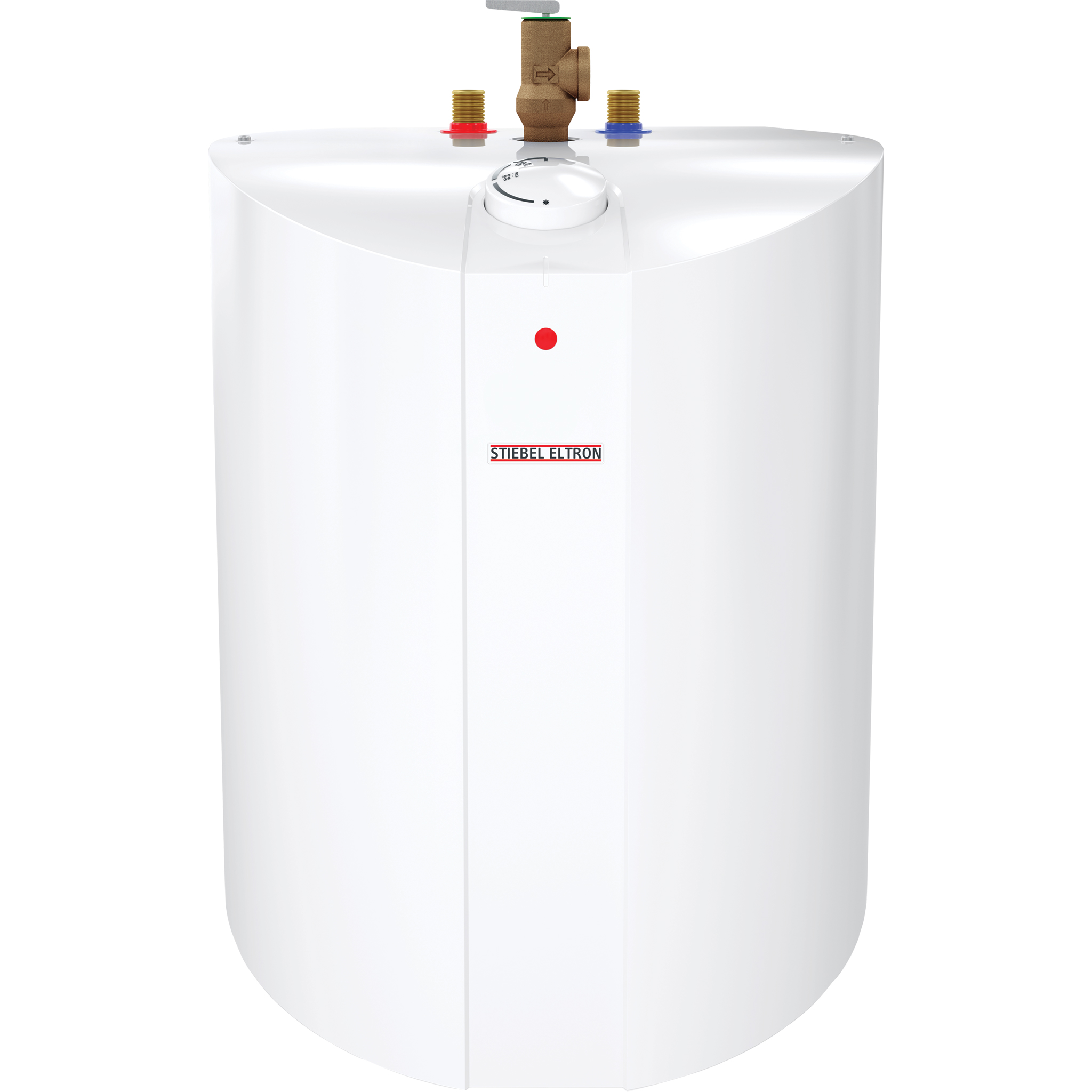

Stiebel Eltron 234046 SHC 4 Point-of-Use 4.0 Gallon Mini-Tank Electric Water Heater
120V • 1.3 kW • Compact, Reliable Hot Water for Point-of-Use Applications
The Stiebel Eltron SHC 4 (Part #234046) is a premium point-of-use mini-tank electric water heater designed to deliver fast, dependable hot water exactly where it’s needed. With a 4.0-gallon capacity and efficient 120V, 1.3 kW operation, this unit is ideal for residential and light commercial applications, including sinks, breakrooms, remote bathrooms, and utility areas where immediate hot water is essential.
Instant Hot Water at the Source
Installed directly at the point of use, the SHC 4 eliminates the delays and water waste associated with long plumbing runs from central water heaters. This provides:
- Immediate hot water delivery at the tap
- Reduced water waste and improved efficiency
- Enhanced user convenience for low-demand applications
It’s an excellent solution for single fixtures or as a booster system to support existing hot water setups.
Increased Capacity for Greater Demand
With a 4.0-gallon tank, the SHC 4 offers more hot water availability than smaller mini-tank models, making it better suited for:
- Kitchen sinks with higher usage
- Office and commercial breakrooms
- Multi-use handwashing stations
This added capacity allows for longer draw times and improved performance between heating cycles.
Compact, Space-Saving Design
The SHC 4 features a compact, under-sink design that fits easily into tight spaces such as cabinets or vanities. Its wall-mounted configuration enables:
- Flexible installation in small or confined areas
- Clean, unobtrusive placement
- Easy integration into new or retrofit applications
Simple 120V Plug-In Installation
Operating on a standard 120V outlet, the SHC 4 is equipped with a 1.3 kW heating element, allowing for quick and straightforward installation without the need for specialized electrical work. Benefits include:
- Plug-and-play convenience
- Reduced installation time and cost
- Compatibility with typical residential electrical systems
Energy-Efficient Operation
The SHC 4 is engineered for efficient performance with minimal standby heat loss, thanks to its insulated tank and optimized heating system. This ensures:
- Lower energy consumption
- Consistent hot water availability
- Cost-effective long-term operation
By delivering hot water directly at the point of use, it also helps reduce wasted energy and water.
Durable Construction and Long-Term Reliability
Built with a glass-lined steel tank and high-quality internal components, the SHC 4 is designed for durability and long service life. Key features include:
- Corrosion-resistant tank construction

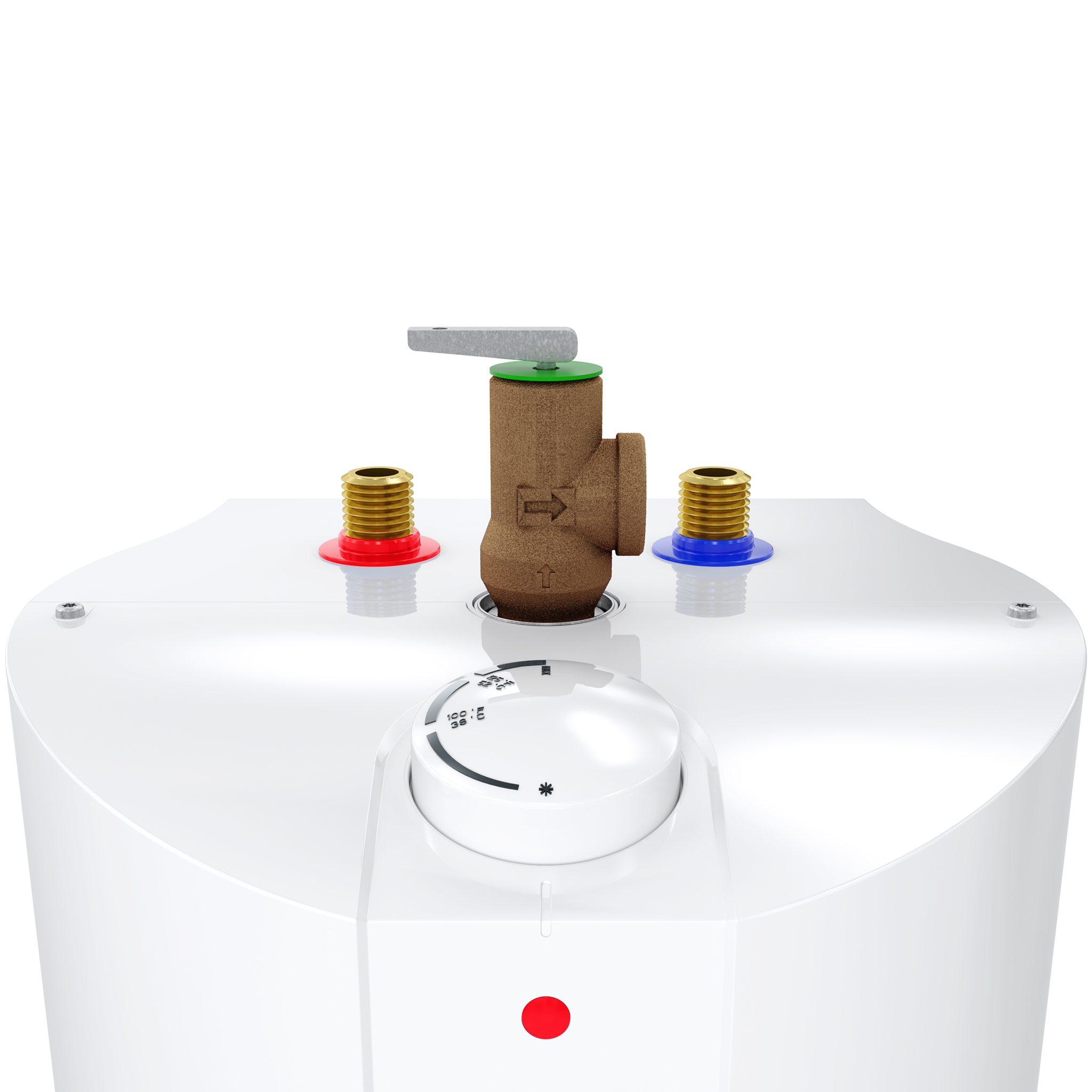

- Integrated temperature and pressure relief valve
- Proven Stiebel Eltron engineering
This ensures reliable performance in both residential and commercial environments.
Adjustable Temperature Control
The unit includes adjustable temperature settings, allowing users to tailor water temperature to their specific needs. This provides:
- Consistent, comfortable hot water
- Greater flexibility across applications
- Improved user control
Versatile Application Flexibility
The SHC 4 can be used as:
- A stand-alone hot water source for a single fixture
- A booster heater to enhance existing systems
Its versatility makes it ideal for homes, offices, retail spaces, and commercial installations.
Technical Specifications
- Capacity: 4.0 gallons
- Power: 1.3 kW
- Voltage: 120V
- Amperage: ~11 A
- Installation: Under-sink, wall-mounted
- Temperature Range: Adjustable up to ~140°F
- Connections: 1/2" NPT
- Compact, space-saving design
Get the Best Price at ProDryers
When selecting a high-quality point-of-use water heater, choosing a trusted supplier is essential. ProDryers is a leading source for Stiebel Eltron products, offering expert support, fast shipping, and competitive pricing.
Buy the Stiebel Eltron SHC 4 (234046) today at the best available price, or request a custom quote for bulk or project pricing.
Contact ProDryers now to secure expert guidance and a premium compact hot water solution designed for efficiency, reliability, and performance.
