Sloan SF-2400-4-BDM Electronic Pedestal Faucet, Sensor Activated, ADA Compliant, 0.5 GPM Multi-Laminar Spray, Chrome Plated Brass, 4" trimplate for 4" Centerset Sink, Below Deck Mechanical Mixing Valve, with Standard SFP-13 Spray Head

Sloan

Our Price: $454.94
List Price: $699.90
(You save $244.96)

Average lead time 1-3 business days

SKU:
3362133
Availability:
In Stock
TOP CATEGORIES
Sloan SF-2400-4-BDM Electronic Pedestal Faucet

Average lead time 1-3 business days

SKU:
3362133
Availability:
In Stock
Adding to cart… The item has been added

Sloan Authorized Distributor and National Supplier Trust Badge

Sloan SF-2400-4-BDM Sensor Activated Electronic Pedestal Faucet (3362133)

Extremely low, hard to beat Sloan SF-2400-4-BDM SF Series Sensor Faucet price. ProDryers normally has these in stock. As long as it is in stock, we ship out fast when ordered by 3PM Eastern. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Sloan supplier.

The Sloan SF-2400-4-BDM, product code 3362133, is a commercial-grade, sensor-activated pedestal faucet with a polished chrome finish and 0.5 GPM multi-laminar spray. This configuration includes a plug-in power adapter, a 4-inch trimplate for 4-inch centerset sink applications, and a below-deck manual mixing valve for water temperature setting and adjustment.

Designed for commercial restrooms with budget-conscious purchasing requirements, the SF-2400 combines a brass faucet body with adjustable infrared detection for hands-free operation. A filtered solenoid valve with a serviceable strainer supports routine maintenance, while the included mounting hardware, sensor cable, and flexible hose help simplify installation.

Key Features

  • Sensor-Activated Operation: Adjustable infrared sensing range supports hands-free hand washing.
  • 0.5 GPM Multi-Laminar Spray: Delivers a low-flow spray at 1.9 liters per minute.
  • Commercial Brass Construction: Brass pedestal faucet body with a polished chrome finish.

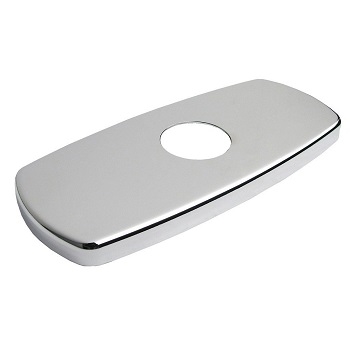

  • 4-Inch Trimplate: Provides additional sink-deck coverage for compatible 4-inch centerset installations.
  • Below-Deck Mixing Valve: Included manual mixing valve allows water temperature setting and adjustment beneath the sink.
  • Plug-In Power: Includes the plug adapter for this configuration.
  • Serviceable Filtration: Filtered solenoid valve includes a strainer filter that can be serviced.
  • Installation Components: Includes a 36-inch sensor cable, 24-inch flexible hose, appropriate mounting hardware, and four AA-size batteries.
  • ADA Compliance: Meets ADA accessibility requirements when installed according to ADA standards.
  • Warranty: One-year limited warranty.

Technical Specifications

  • Full Model: SF-2400-4-PLG-BDM-CP-0.5GPM-MLM-FCT
  • Product Code: 3362133
  • Mounting: Single-hole, deck-mounted with included 4-inch trimplate
  • Spout Style: Mid-body pedestal
  • Flow Rate: 0.5 GPM
  • Spray Type: Multi-laminar
  • Power Supply: Plug adapter
  • Temperature Control: Below-deck manual mixing valve
  • Factory Default Timeout: 30 seconds
  • Finish: Polished chrome

Installation and Selection

Confirm sink-hole spacing, deck dimensions, electrical outlet access, and below-deck clearance before ordering. The included manual mixing valve provides temperature adjustment; it is not described as a thermostatic mixing valve. For a coordinated restroom installation, consider the Sloan ESD-1500 soap dispenser, sold separately.

Sloan SF-2400-4-BDM Electronic Pedestal Faucet Spec Sheet

Download the Sloan SF-2400-4-BDM Electronic Pedestal Faucet Spec Sheet


Expert Insight

Why We Recommend the Sloan SF-2400-4-BDM

The Sloan SF-2400-4-BDM Electronic Pedestal Faucet (3362133) combines touch-free hand washing with commercial-grade brass construction and efficient 0.5 GPM flow. We often recommend this model for projects that need dependable sensor activation, a 4-inch trim plate, and adjustable tempered water from a below-deck mechanical mixing valve. Its polished chrome finish and mid-height pedestal profile provide a clean, versatile appearance for commercial restrooms.

Best Applications

The SF-2400-4-BDM is well suited for schools, offices, healthcare buildings, restaurants, retail centers, hotels, and other frequently used commercial restrooms. Its adjustable infrared sensor, filtered solenoid valve, serviceable strainer, splash-resistant control module, and SFP-13 multi-laminar spray head support reliable operation and straightforward maintenance.

Quick Tip

Confirm the sink’s 4-inch centerset layout, single faucet mounting hole, hot and cold supply connections, and available under-counter space before installation. Leave the mechanical mixing valve, control module, solenoid, strainer, and power components accessible for temperature adjustment and future service.

Common Question

Does the Sloan SF-2400-4-BDM include a temperature mixing valve?
Yes. This configuration includes a below-deck mechanical mixing valve that connects to the hot and cold water supplies and allows the tempered outlet temperature to be set during installation. The valve should remain accessible beneath the sink for future adjustment and maintenance.
