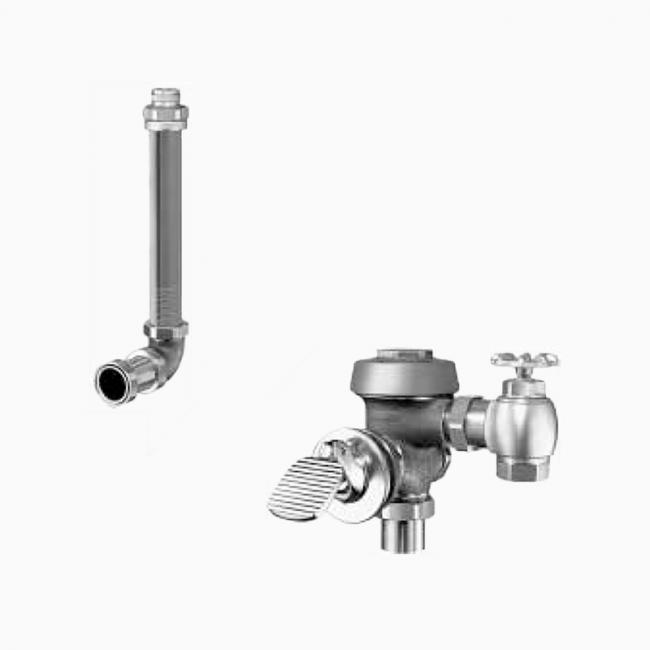

Sloan ROYAL 343-3.5-4-3/4-LDIM Closet Foot Pedal Flushometer (3014120)
Extremely low, hard to beat Sloan ROYAL 343-3.5-4-3/4-LDIM price. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Sloan supplier.
Details:
- Flush Volume: 3.5 gpf (13.2 Lpf)
- Finish: Rough Brass (RB)
- Valve: Diaphragm
- Valve Body Material: Semi-red Brass
- Fixture Type: Water Closet
- Fixture Connection: Top spud
- Rough-In Dimension: 14" (356mm)
- Spud Coupling: 1-1/4" (32mm)
- Supply Pipe: 1" (25mm)
- L Dimension: 4-3/4" (121mm) (4-3/4-LDIM)
Features:
- Water conservation is aided by the non-hold-open foot pedal (not ADA compliant)
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- No external volume adjustment to ensure water conservation
- PERMEX synthetic rubber diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Sloan ROYAL 343-3.5-4-3/4-LDIM Closet Foot Pedal Flushometer Spec Sheet
Download the Sloan ROYAL 343-3.5-4-3/4-LDIM Closet Foot Pedal Flushometer Spec Sheet
Download the Sloan Foot Pedal Flushometer Installation Instructions
