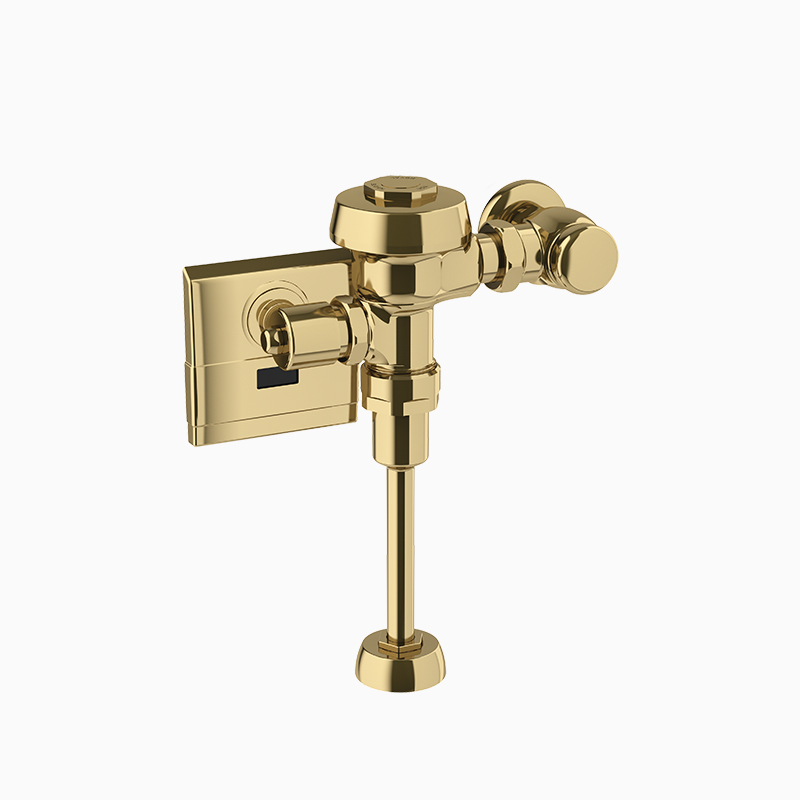

Sloan ROYAL 186 ESS-0.5-PB-HW Sensor Activated Urinal Flushometer (3452606)
Extremely low, hard to beat Sloan ROYAL 186 ESS-0.5-PB-HW price. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Sloan supplier.
Details:
- Flush Volume: 0.5 gpf (1.9 Lpf)
- Finish: Polished Brass (PB)
- Power Type: Hardwired (HW)
- Valve: Diaphragm
- Valve Body Material: Semi-red Brass
- Fixture Type: Urinal
- Fixture Connection: Top spud
- Rough-In Dimension: 11-1/2" (292mm)
- Spud Coupling: 3/4" (19mm)
- Supply Pipe: 3/4" (19mm)
Features:
- Sensor-activated, hardwired urinal flushometer
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Critical components, including cover, valve body, control stop and sweat solder kit, are made of semi-red brass
- PERMEX synthetic rubber diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Sloan ROYAL 186 ESS-0.5-PB-HW Urinal Flushometer Spec Sheet
Download the Sloan ROYAL 186 ESS-0.5-PB-HW Urinal Flushometer Spec Sheet
