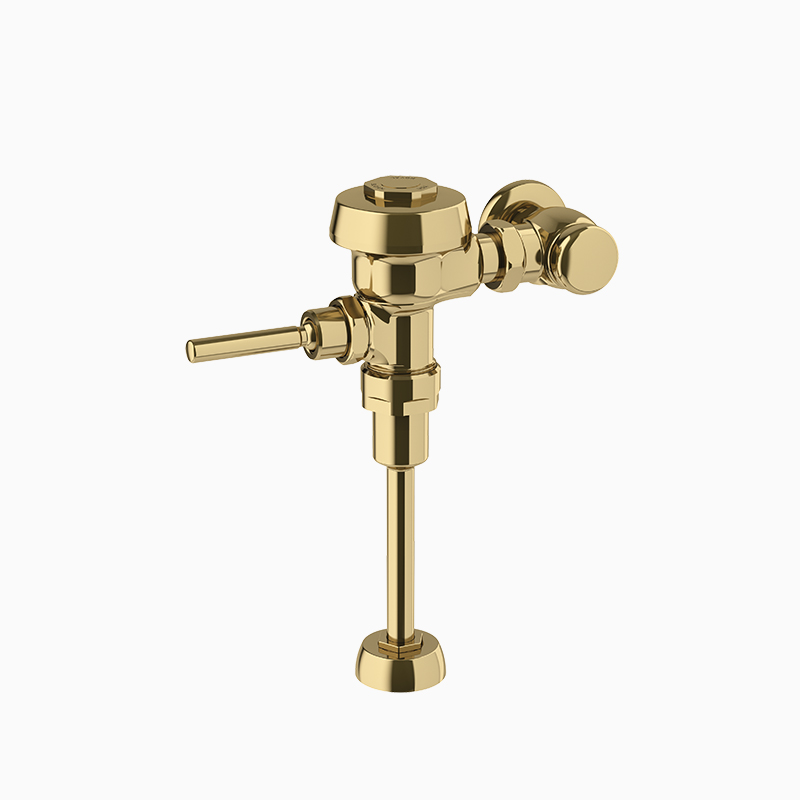

Sloan ROYAL 186-1.0-PB Manual Urinal Flushometer (3912680)
Extremely low, hard to beat Sloan ROYAL 186-1.0-PB price. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Sloan supplier.
These manual, exposed urinal, diaphragm model flushometer provides savings on water usage without giving up performance advantages. Features such as accurate flush delivery, quiet performance and durable components affirm the Royal as the true leader in flushometer design.
Details:
- Flush Volume: 1.0 gpf (3.8 Lpf)
- Finish: Polished Brass (PB)
- Valve: Diaphragm
- Valve Body Material: Semi-red Brass
- Fixture Type: Urinal
- Fixture Connection: Top spud
- Rough-In Dimension: 11-1/2" (292mm)
- Spud Coupling: 3/4" (19mm)
- Supply Pipe: 3/4" (19mm)
Features:
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which, prevents urinal from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX synthetic rubber diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Sloan ROYAL 186-1.0-PB Urinal Flushometer Resources
Download the Sloan ROYAL 186-1.0-PB Urinal Flushometer Spec Sheet
Download the Sloan ROYAL Flushometers Install Guide
