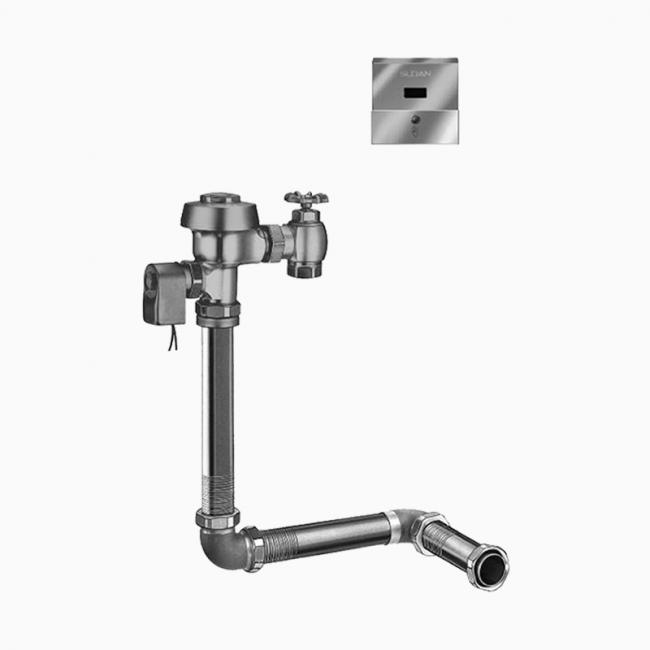

ROYAL 143 ESS-1.6-OR-2-10-3/4-LDIM-HW Water Closet Flushometer (3451129)
Extremely low, hard to beat ROYAL 143 ESS-1.6-OR-2-10-3/4-LDIM-HW price. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Sloan supplier.
Details:
- Flush Volume: 1.6 gpf (6.0 Lpf)
- Finish: Rough Brass (RB)
- Power Type: Hardwired (HW)
- Valve: Diaphragm
- Valve Body Material: Semi-red Brass
- Fixture Type: Water Closet
- Fixture Connection: Rear spud
- Rough-In Dimension: 14-1/2" (368mm)
- Spud Coupling: 1-1/2" (38mm)
- Supply Pipe: 1" (25mm)
- L Dimension: 2"-10-3/4" (51-273mm) (2-10-3/4-LDIM)
- Override: Electrical (OR)
Features:
- Flush volumes start as low as 1.6 gpf/6.0 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which, prevents urinal from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX synthetic rubber diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
ROYAL 143 ESS-1.6-OR-2-10-3/4-LDIM-HW Closet Flushometer Spec Sheet
Download the ROYAL 143 ESS-1.6-OR-2-10-3/4-LDIM-HW Closet Flushometer Spec Sheet
