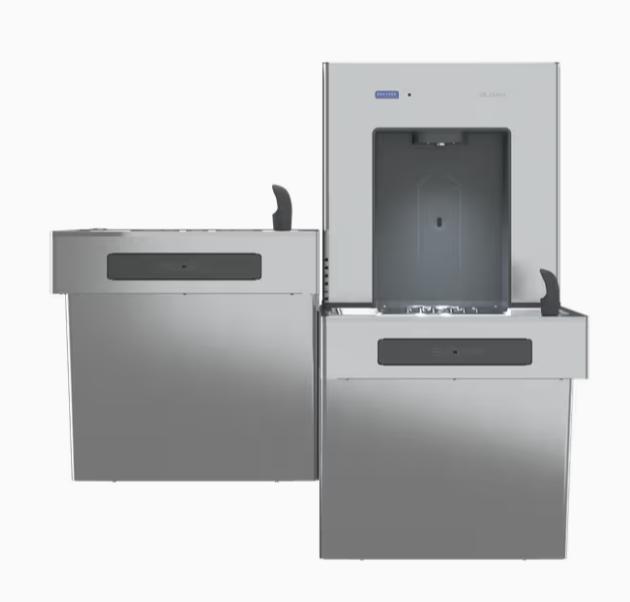

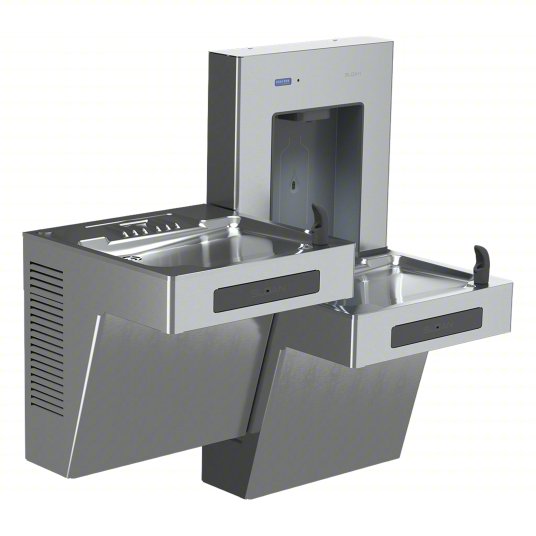

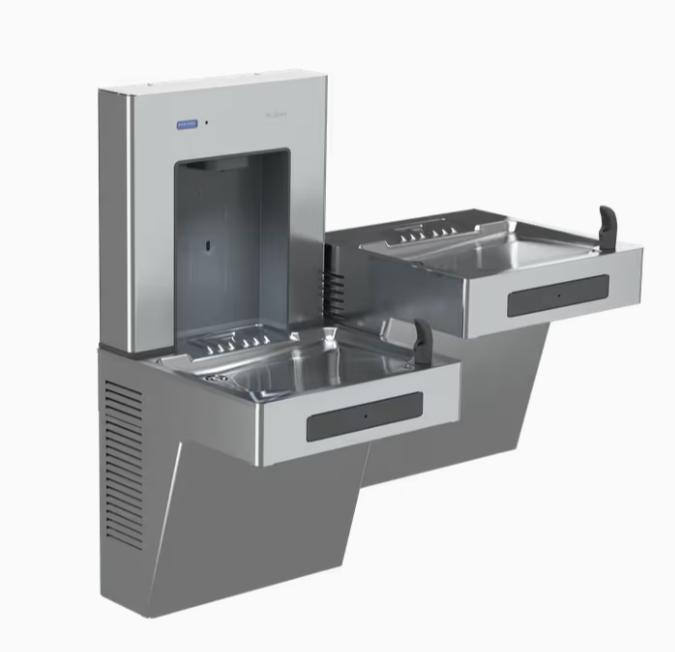

Sloan DropSpot™ DRS120-FIL-UNREF-SS On-Wall Bottle Filler with Bi-Level Cooler (33820066)
Upgrade your facility with the sleek, high-efficiency Sloan DropSpot™ DRS120-FIL-UNREF-SS. Engineered for high-traffic indoor environments, this on-wall combo unit features a modern, touch-free bottle filler paired with an accessible bi-level drinking fountain configuration. Built from premium 304 stainless steel with a satin finish, it delivers long-lasting durability, exceptional aesthetic appeal, and a highly hygienic hydration experience.
This specific model is filtered and unrefrigerated. It features an advanced filtration system to deliver clean, crisp water, while remaining an energy-efficient choice for facilities where ambient-temperature water is preferred.
Key Features
- Bi-Level Configuration: Features two multi-level drinking fountains alongside the upper bottle filler station, providing enhanced accessibility and higher user capacity.
- Advanced Water Filtration: This filtered (FIL) model ensures clean drinking water and includes a soft ambient white LED light to indicate the real-time status of the filter cartridge.
- Touch-Free Smart Sensor: The bottle filler features an advanced hands-free sensor to eliminate touchpoints, operating with a 20-second maximum run time to prevent accidental overflows.
- Rapid & Smooth Dispensing: Features a splash-free laminar water supply delivering a quick flow rate of up to 1.2 gpm (4.5 Lpm) for bottles, alongside a steady 0.3 gpm (1.1 Lpm) stream from the drinking fountain bubblers.
- Sustainability Tracking: An intuitive digital bottle counter display tracks your facility’s environmental impact by showing the exact ounces dispensed and the total number of 16 oz. plastic bottles saved.
- Illuminated Filling Area: Integrated backlit LED lights automatically illuminate the bottle-filling station when the sensor is activated.
- Ergonomic Push Bars: The drinking fountains are activated via patent-pending antimicrobial front push bars that require less than 5 pounds of force, making them easily operable from any touchpoint along the bar.
- Easy Maintenance: A convenient drop-down door assembly provides quick, effortless front access for filter cartridge replacement.
- IoT & Smart Facility Ready: This unit is fully IoT-compatible with a subscription to the SC Argus® Pro SaaS platform, allowing for streamlined remote water management.
- Seamless Retrofitting: The rough-in configuration intentionally matches other major manufacturers' recommended locations, ensuring a hassle-free, drop-in replacement for older water coolers.
Electrical & Compliance Details
The Sloan DropSpot™ DRS120-FIL-UNREF-SS operates on standard 115VAC, 60Hz, 5.3A power and should be connected to a GFCI-protected circuit.
When properly installed, this unit is fully ADA compliant. It also carries top-tier industry certifications for safety and sanitation, including being cULus Listed, cUPC Certified, FCC Compliant, and certified to NSF-61 and NSF-372 lead-free standards.
