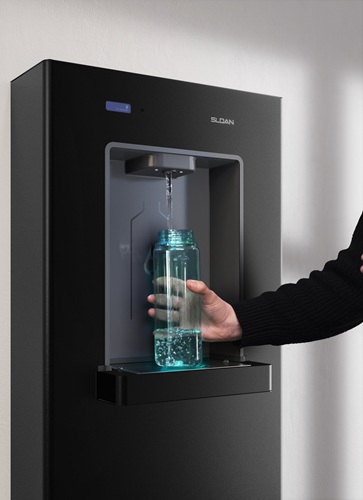

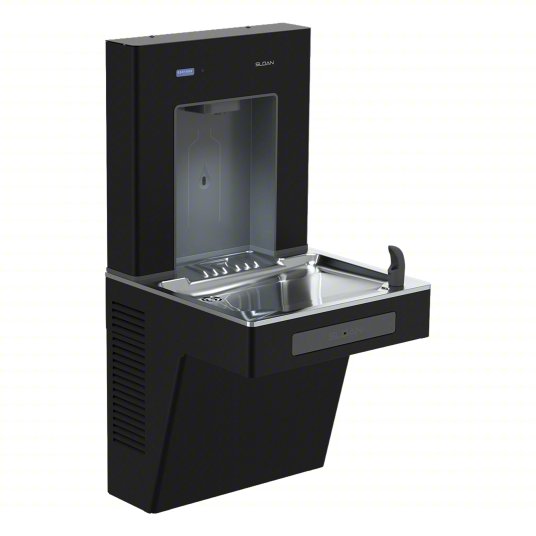

Sloan DropSpot™ DRS110-UNFIL-UNREF-BLK On-Wall Bottle Filler with Single-Level Cooler (33820063)
Upgrade your facility with the striking, high-efficiency Sloan DropSpot™ DRS110-UNFIL-UNREF-BLK. Engineered for high-traffic indoor environments, this on-wall combo unit seamlessly pairs a modern, touch-free bottle filler with a single-level drinking fountain. Built with a premium, sleek black finish, it delivers long-lasting durability, an upscale contemporary aesthetic, and a highly hygienic hydration experience.
This specific model is designed to be unfiltered and unrefrigerated, making it an energy-efficient, low-maintenance choice for locations that already have centralized water filtration or where ambient-temperature water is preferred.
Features
- Touch-Free Smart Sensor: The bottle filler features an advanced hands-free sensor to eliminate touchpoints, operating with a 20-second maximum run time to prevent accidental overflows.
- Rapid & Smooth Dispensing: Features a splash-free laminar water supply delivering a quick flow rate of up to 1.2 gpm (4.5 Lpm) for bottles, alongside a steady 0.3 gpm (1.1 Lpm) stream from the drinking fountain bubbler.
- Sustainability Tracking: An intuitive digital bottle counter display tracks your facility’s environmental impact by showing the exact ounces dispensed and the total number of 16 oz. plastic bottles saved.
- Illuminated Filling Area: Integrated backlit LED lights automatically illuminate the bottle-filling station when the sensor is activated.
- Ergonomic Push Bar: The drinking fountain is activated via a patent-pending antimicrobial front push bar that requires less than 5 pounds of force, making it easily operable from any touchpoint along the bar.
- IoT & Smart Facility Ready: This unit is fully IoT-compatible with a subscription to the SC Argus® Pro SaaS platform, allowing for streamlined remote water management.
- Seamless Retrofitting: The rough-in configuration intentionally matches other major manufacturers' recommended locations, ensuring a hassle-free, drop-in replacement for older water coolers.
Electrical & Compliance Details
The Sloan DropSpot™ DRS110-UNFIL-UNREF-BLK operates on standard 115VAC, 60Hz, 5.3A power and should be connected to a GFCI-protected circuit.
When properly installed, this unit is fully ADA compliant. It also carries top-tier industry certifications for safety and sanitation, including being cULus Listed, cUPC Certified, FCC Compliant, and certified to NSF-61 and NSF-372 lead-free standards.
