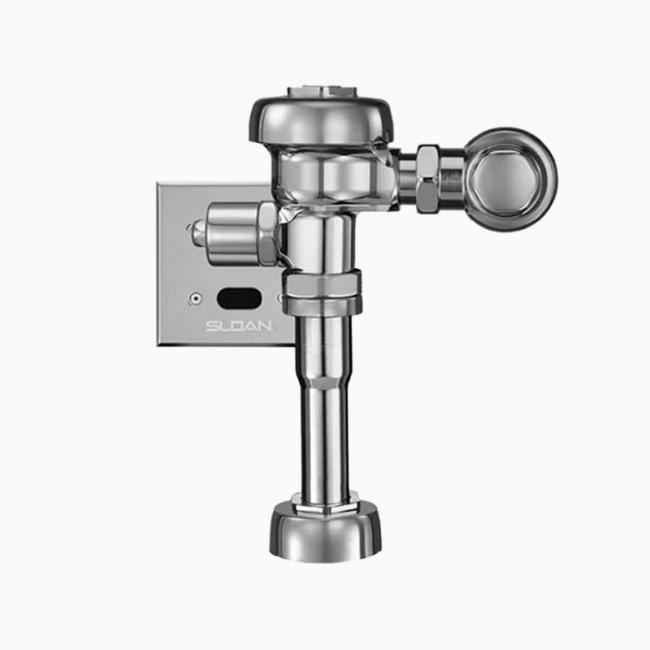

SLOAN 180 ESS-1.5-DFB-HW Urinal Flushometer, Exposed, Hardwired, Sensor Activated, Dual-Filtered Fixed Bypass Diaphragm, 1.5 GPF

Our Price: $659.30
List Price: $1,014.30
(You save $355.00

Average lead time 5-10 business days

In Stock

Average lead time 5-10 business days

In Stock

SLOAN 180 ESS-1.5-DFB-HW Sensor Activated Urinal Flushometer (3772459)

Sloan Valve Products Made in the USA and Qualify for the Buy American Act

Extremely low, hard to beat SLOAN 180 ESS-1.5-DFB-HW price. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Sloan supplier.


  • Flush Volume: 1.5 gpf (5.7 Lpf)
  • Finish: Polished Chrome (CP)
  • Power Type: Hardwired (HW)
  • Valve: Diaphragm
  • Bypass: Dual-Filtered Fixed Bypass Diaphragm (DFB)
  • Valve Body Material: Semi-red Brass
  • Fixture Type: Urinal
  • Fixture Connection: Top spud
  • Rough-In Dimension: 11-1/2" (292mm)
  • Spud Coupling: 1-1/4" (32mm)
  • Supply Pipe: 1" (25mm)


  • Flush volumes start as low as 1.0 gpf/3.8 Lpf
  • Water conservation is aided by the ADA-compliant, non-hold-open handle, which, prevents urinal from exceeding intended flush volume
  • Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
  • Integrity of the product is maintained with the vandal-resistant stop cap
  • Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
  • Adjustable tailpiece to accommodate different height requirements
  • High chloramine resistant PERMEX synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
  • Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
  • Valve shall be in compliance to the applicable sections of ASSE 1037

SLOAN 180 ESS-1.5-DFB-HW Urinal Flushometer Spec Sheet

Download the SLOAN 180 ESS-1.5-DFB-HW Urinal Flushometer Spec Sheet
