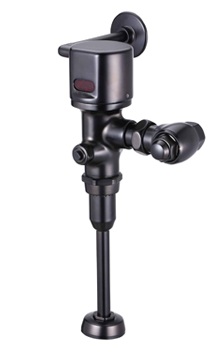

Hydrotek H8C-B1-05-MB Matte Black High-Efficiency Urinal Flush Valve

The Hydrotek H8C-B1-05-MB is a sensor-activated, piston-operated urinal flush valve that combines striking industrial design with precision water management. Finished in a premium Matte Black, this unit is engineered for high-traffic commercial environments where modern aesthetics and reliable performance are non-negotiable. Delivering a water-conserving 0.5 GPF, this valve provides a powerful flush while supporting green building initiatives and reducing utility costs.

Precision Engineering & Durability

• Superior Piston Mechanism: Features a slow-closing piston flushing mechanism that ensures consistent cycle times and accurate flush volumes regardless of water pressure fluctuations.
• High-Copper Brass Casting: Constructed from high-copper, low-zinc brass to provide maximum resistance to dezincification and ensure long-term structural integrity.
• Chemical-Resistant Seals: Equipped with VSI silicone elastomer piston seals, specifically formulated to withstand the harsh effects of chlorine, chloramines, and ammonia.
• Integrated Debris Protection: Includes a standard self-cleaning filtering system that protects the internal solenoid and piston from waterborne sediment and mineral buildup.

Advanced Operational Intelligence

• Hardwired Reliability: Powered by a standard 120V AC plug-in adapter, delivering constant, dependable power for high-frequency use without the maintenance requirements of battery-operated units.
• Touchless ADA Compliance: The infrared sensor provides a sanitary, "no-hands" experience, significantly reducing the risk of cross-contamination in public restrooms.
• Smart Self-Diagnostics: Features an integrated electronic system with self-diagnostics and a manual reset function to simplify troubleshooting and facility maintenance.
• Sentinel Flush Feature: A built-in 36-hour sentinel flush automatically clears the fixture during periods of inactivity to maintain the trap seal and prevent sewer odors.
• Manual Mechanical Override: Features a standard manual-mechanical override button, ensuring the urinal remains fully functional even during power interruptions.

Installation & Technical Specifications

• Mounting Configuration: Designed for exposed installation on top spud urinal fixtures.
• Standard Connections: Includes a 3/4" I.P.S. angle stop valve with a vandal-resistant cap and a 3/4" top spud coupling.
• Operating Range: Functions effectively across a wide pressure range of 10–125 PSI.
• Field Adaptability: Includes an adjustable tailpiece to accommodate field variations and can be configured for left-hand rough-ins.
• Standard Dimensions: Features an 11-1/2" rough-in height from the top of the fixture to the center of the inlet.
