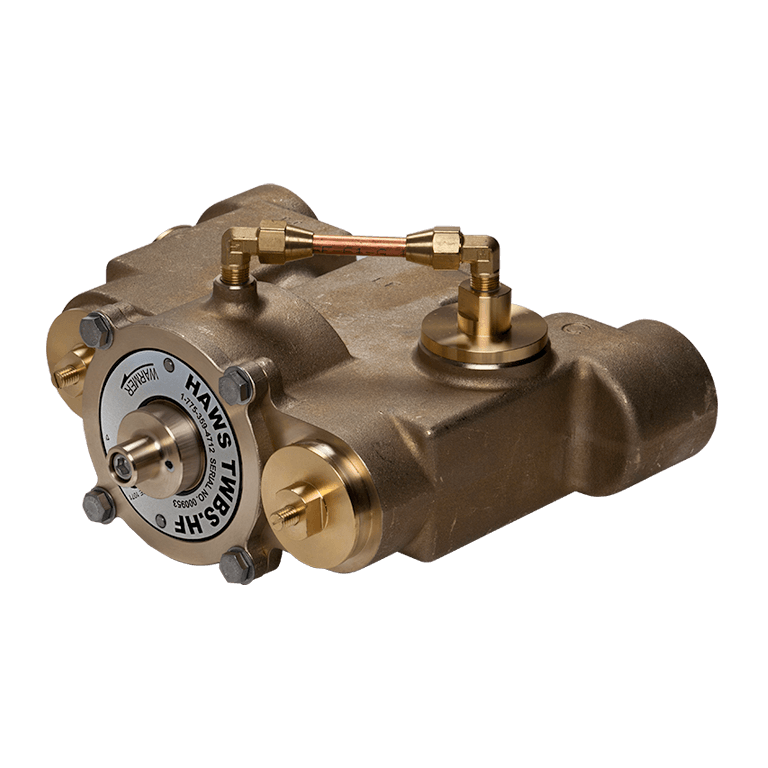

Haws TWBS.HF Thermostatic Mixing Valve
Model TWBS.HF Description
Low-lead Emergency Valve (patent pending), thermostatically mixes hot and cold water to provide a safe fluid supply for emergency shower and eyewash equipment. The valve contains a secondary high temperature limit valve to provide additional protection to the user in the event of main tempering valve malfunction. Additionally, to ensure a fail-safe water supply for emergency shower and eyewash stations, a pressure sensing diverter valve is provided that sends a pressure signal to open the cold water by-pass valve in the event of hot water pressure loss, main valve thermostat malfunction, or clogged cold water check-stop. (No gauges supplied - ASSE 1071 standard recommends gauges be placed 5 to 8 feet (1.52 to 2.44 m) downstream for the most accurate temperature measurement.)
Features
- A flow rate of 1 to 78 gpm (295 L) for better temperature control across the operating range
- AXION's superior design and technology provide a complete safety solution for increased victim comfort
- Lowest internal pressure drop for this class of valve (advantage where supply pressure is low)
- Wax based thermostat technology for fast response time with proven highly reliable temperature control
- Highest Cold Water Bypass flow rate in the industry (100% of rated tepid flow rate)
- Low-lead brass valve design with internal check stops
- Oversized valve seats resist failures caused by foreign matter
- A new and efficient shuttle design eliminates valve sticking
- A custom funnel design improves temperature control at low flow rates
- Outlet temperature is factory set to 85° F (29° C)
- Tempered water: High temperature limit is factory set to 87° F (30° C)
- Cold water by-pass valves are closed during normal operation, regardless of flow rate.
Certifications
- Buy American Act
- CSA Certified
