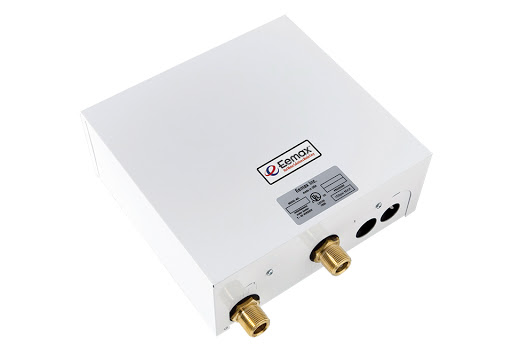

Eemax EX1608T2-S Series Two Electric Tankless Water Heater for Sanitation
Parallel Models (Two Heating Modules) with Thermostatic Control
- Emergency Eyewash (EE). Meets ANSI tepid water requirements. Max. temperature of 90°F
- Factory Set (FS). Customer specified factory-set not to exceed temperature ambient to 180°F (60°F-180°F)
- Sanitation (S). Factory preset not to exceed temperature of 180°F
Features
- Parallel turn on
- On demand hot water
- Continuous hot water. No storage capacity to run out
- Reduces installation cost and material. No T&P relief valve needed (check local codes) or venting
- Easy installation with integral 3/4" NPT fittings
- Cut energy waste. Flow switch activates heater only on demand (no standby heat loss)
- Meets ANSI Z358.1 tepid water requirement (EE option)
- Two glass reinforced heater bodies and Nichrome elements – a unique, patented flow path ensures optimum heat transfer and extended element life
- Warranty, five (5) years limited on leaks, one (1) year parts
- Field serviceable replaceable cartridge element
- Unit mounts on wall
- High temperature limit switch
Performance Specifications
- GPM Turn On: 1.5
- Minimum Operating Temp: 100
- Max Operating Temp: 180
- Minimum Operating Pressure: 25 PSI
- Max Pressure Rating: 150 PSI
Electrical Specifications
- Power: 16.6kW
- Volts: 208V
- Phase: Single
- Amperage: 80 (2 x 40)
- Recommended Wire Size: 2 sets of 8 AWG
