Eemax ED020480T2T-ML Electric Tankless Water Heater for Multi-Lavatory, 20kW, 480V, Three Phase, 24 Amps, 0.3 GPM Turn On

Our Price: $1,915.60
List Price: $2,622.49
Savings: $706.89

Average lead time 5-7 business days

Product Code:
EE-ED020480T2T-ML
Availability:
In Stock

Average lead time 5-7 business days

Product Code:
EE-ED020480T2T-ML
Availability:
In Stock

Eemax ED020480T2T-ML Three Phase Electric Tankless Water Heater for Multi-Lavatory

Triple Module, Commercial/Industrial Thermostatic 3-Phase Heater

  • Emergency eye/face wash ANSI Z358.1 (EE)
  • Factory set ambient to 180°F (FS)
  • Multi lavs 0.3 turn on. Staged up to 4 lavs 105°F-110°F temp setting, aerators supplied (ML)
  • Sanitation 180°F (S)

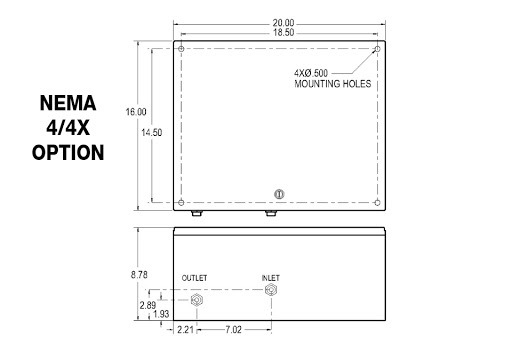

  • N4, N4X (304SS) enclosures

Features

  • Hot or cold water feed
  • Available electrical models are 480V Delta (ED models) or 208V Delta (EX models) no neutral leg required
  • Fitted with 1/2" compression fittings and electrical entry on the bottom
  • Built in over temp protection
  • Flow switch activates heater only on demand (no standby heat loss)
  • Save water – "Point of use application"
  • Continuous hot water – no storage capacity to run out
  • Factory set temperature available. Range ambient to 180°F
  • Capacity to 5 GPM (T3 only), 4 GPM (T2T)
  • Thermostatic control. Microprocessor provides stable outlet temperatures
  • Warranty, five (5) years limited on leaks, one (1) year parts
  • Field serviceable replaceable cartridge element

Performance Specifications

  • GPM Turn On: 0.3
  • Minimum Operating Temp: 105
  • Max Operating Temp: 110
  • Minimum Operating Pressure: 25 PSI
  • Max Pressure Rating: 150 PSI

Electrical Specifications

  • Power: 20kW
  • Volts: 480V
  • Phase: Three
  • Amperage: 24/phase
  • Recommended Wire Size: 10AWG

Spec Sheet
Installation Guide
Warranty
