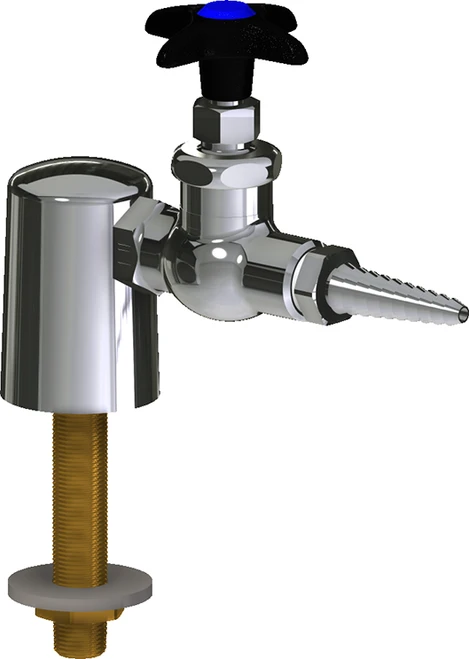

Chicago Faucets LGF1-A11C Single Fine Needle Valve for Laboratory Air, Gas & Vacuum Service
The Chicago Faucets LGF1-A11C is a single fine needle valve designed for wall or turret mounting in laboratory air, gas, and vacuum applications. Its straight-pattern design features a laboratory nozzle with 10 serrations for a secure laboratory hose connection and a vandal-resistant 2-1/2" cross handle for controlled operation. The fitting includes AIR, GAS, and VAC laboratory index buttons for proper service identification. Finished in polished chrome, the LGF1-A11C provides a durable laboratory fitting for schools, research facilities, healthcare laboratories, testing facilities, and other commercial laboratory environments.
Key Features
- Single fine needle valve for wall or turret mounting.
- Straight-pattern needle valve design.
- Suitable for laboratory air, gas, and vacuum service.
- Laboratory nozzle with 10 serrations for secure laboratory hose connection.
- Vandal-resistant 2-1/2" cross handle.
- Includes AIR, GAS, and VAC laboratory index buttons.
- Rated operating pressure: 125 PSI maximum for air service.
- Rated operating pressure: 7.25 PSI maximum for laboratory gas service.
- Rated operating pressure: 29.92 Hg for vacuum service.
- 3/8" NPT male inlet.
- Complies with Buy American Act requirements.
- ADA ANSI/ICC A117.1 compliant.
- ANSI Z21.15b/CSA 9.1b compliant.
- Polished chrome finish.
Warranty
- 5-Year Limited Faucet Warranty
- 1-Year Limited Finish Warranty
- 5-Year Limited Mechanical Warranty
