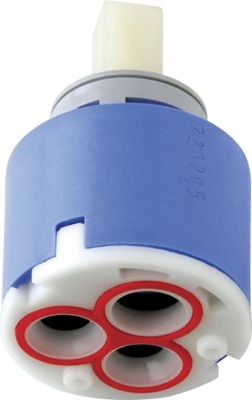

Chicago Faucets 2300-XJKABNF
The Chicago Faucets 2300-XJKABNF is a premium Ceramic Operating Cartridge engineered for the 2300 (Marathon) Series of single-lever faucets. This high-performance cartridge is the "engine" of the faucet, providing smooth, drip-free operation and precise control over both water temperature and flow volume. It features a built-in Hot Water Limit Stop, which allows facility managers to set a maximum temperature to prevent scalding, and an adjustable Volume Control to promote water conservation. As part of the ECAST® line, it is manufactured with lead-free materials, ensuring compliance with all potable water safety standards.
Specifications:
- Lift and turn
- Short stem for exposed caps
- For single-lever faucets
- Lift to operate
Expert Insight:
The 2300-XJKABNF is the gold standard for single-lever reliability. Installation Tip: When installing the new cartridge, ensure the two "alignment pins" on the bottom of the cartridge seat perfectly into the corresponding holes in the faucet body. If they aren't aligned, the retaining nut will not tighten correctly and you'll experience a high-pressure leak. Pro Tip: The Hot Water Limit Stop is a red adjustment ring located under the handle. In healthcare or childcare environments, we recommend setting this limit immediately during installation to meet local safety codes. If your 2300 series faucet is leaking from the handle area or becomes difficult to push/pull, this ceramic cartridge is the definitive fix. Always flush the supply lines before installing to prevent debris from scratching the polished ceramic discs. Buy at the best price or request a high-volume quote at ProDryers today by calling 888-503-7937!
