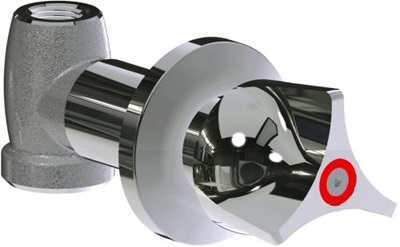

Chicago Faucets 1770-HOTABCP
The Chicago Faucets 1770-HOTABCP is a premium OEM concealed straight valve designed for dedicated Hot Water control in professional laboratory, medical, and commercial environments. This valve is engineered for "in-wall" or concealed mounting, allowing for a clean, streamlined installation where only the handle and decorative flange are visible. It features a heavy-duty brass body with a high-luster polished chrome (CP) finish and is equipped with a 2-1/2" three-wing canopy handle featuring a red "Hot" indexed button. Internally, the valve utilizes a slow compression rebuildable cartridge, providing smooth, precise flow adjustment. As an ECAST® certified product, it is manufactured with less than 0.25% lead content, ensuring full compliance with NSF/ANSI 372 and federal safe drinking water standards.
- Straight valve
- 2-1/2" Three-wing canopy handle (950-HOTJKCP)
- Slow compression operating cartridge, left-hand (217-XTLHJKABNF)
- Polished chrome
Expert Insight:
The 1770-HOTABCP is a "straight" valve, meaning the water enters and exits in a linear path—perfect for vertical wall-mount supply lines. Unlike the angle valves (1769 series), this model is ideal when your piping runs directly behind the wall toward the spout. Installation Tip: Because this is a concealed valve, the depth at which you set the rough-in body is critical; ensure you follow the mounting templates so the canopy handle sits flush against the finished wall. Pro Tip: This valve uses the 217-XTLHJKABNF slow compression cartridge. If you find the handle requires too many turns to shut off, you can actually retrofit this body with a Quaturn™ 1/4-turn cartridge for faster operation. Need the matching cold water valve for a dual-control setup? Call ProDryers at 888-503-7937!
