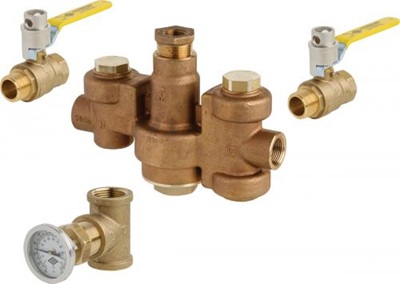

Chicago Faucets 132-HFSTABNF Thermostatic Mixing Valve
Specifications:
- Inlet: 3/4" NPT inlet
- Outlet: 1" NPT outlet
- Maximum operating pressure: 125 PSI
- Outlet temperature range: 60°F-95°F (15°C-35°C)
- Maximum hot water supply temperature: 180°F (82°C)
- Flow Rate: 1.0 – 35.1 GPM @ 30 PSID
Warranty:
- 1-Year Limited Finish Warranty
- 1-Year Limited Material Warranty
