Bradley Corp 2B4-2114900-BN
Elvari Surface-Mounted ADA Hand Dryer
Model 2B4-2114900-BN

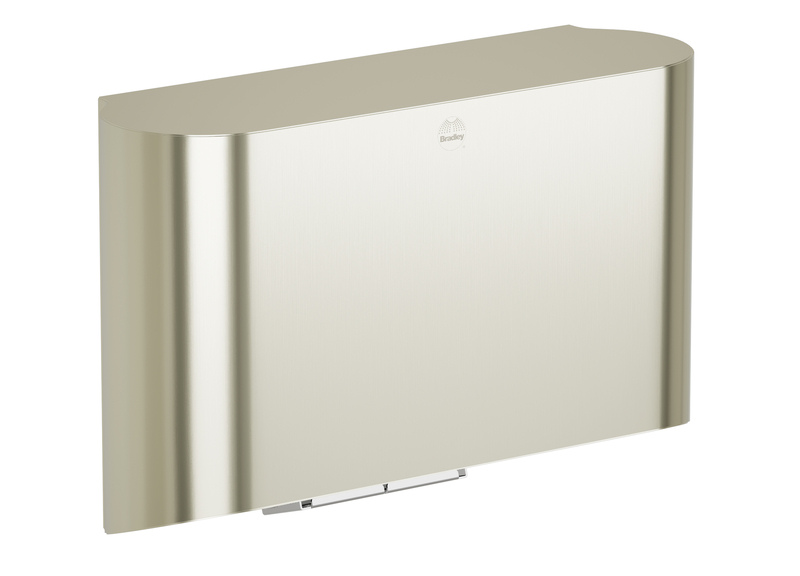

Bradley 2B4-2114900-BN with touchless activation and a pill-shape stainless steel cover, the Elvari Hand dryers provide a stylish and efficient hand drying experience that is ADA compliant. Adjustable features include sensing distance and air speed for customized operation. Carbon filter and 3M Filtrate included for exceptional performance.
Features:
- Dual air outlets resulting in enhanced drying efficiency and quieter operation
- Adjustable sensing distance and air speed for customized performance
- Includes a carbon filter for filtering and trapping of volatile organic compounds (VOCs), gases, and odors
- Includes a 3M Filtrete™ with a MERV rating of 12 and filters 80%–89.9% of 1.0–3.0 micron particles and 90% or greater of 3.0–10.0 micron particles
Operation: No‑touch operation. 60 second auto shutoff timing protection. Sensor range is adjustable from 4–9". Standard is 6.69". LED indicator will illuminate when unit is activated.
| Product Specifications | |
| Voltage: 220-240V | Consumption: 3.8-4.2A |
| Nominal Power: 325-500 W | RPM: 16,000-29,000 |
| Airflow: 42-60 CFM | Airspeed: 70–82 m/s, Adjustable |
| Noise Level: 72.-78 dB | Insulation: Grounding required |
| Frequency: 60 Hz or 50/60 Hz | Ambient Temp: 77°F |
| Drying Time: 10-15 Seconds | Mounting: Surface, ADA |
| Protection Level: IP24 | |
Overall Dimensions: 8.5" H x 12.5" W x 3.9" D (217mm x 318mm x 100mm)
Weight: 8.4 lb (3.8 kg)
Technical Data:
2B4 Series Spec Sheet
Elvari Brochure
2B4 Series Installation
