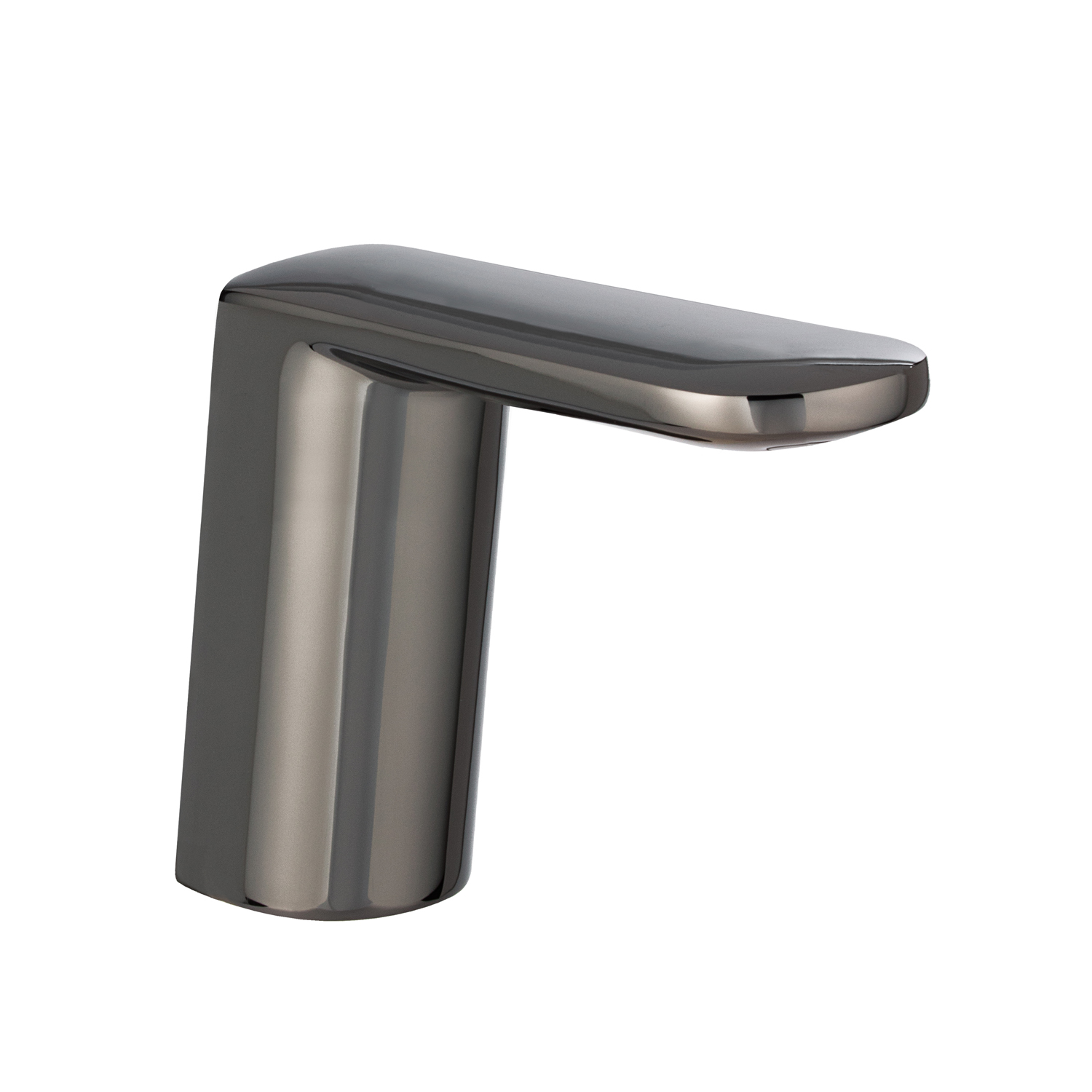

Bobrick B-9951 Fino Automatic Faucet

The Bobrick B-9951 is a premium, touch-free automatic faucet from the Fino Collection, featuring a streamlined, modern design and a high-luster Polished Graphite finish. Constructed with a one-piece heavy-duty cast brass spout body, this ADA-compliant fixture is engineered for prestigious commercial washrooms where durability and sophisticated aesthetics are paramount.

Technical Specifications & Performance

Superior Construction: The spout assembly is crafted from one-piece heavy-duty cast brass, providing long-term reliability in high-traffic environments.
Touch-Free Technology: Utilizes a built-in IR Time of Flight sensor with sophisticated automatic user detection to ensure hygienic, hands-free operation and optimum water savings.
Water Efficiency: Delivers a controlled flow rate of 0.5 GPM (1.9 LPM) through a concealed, vandal-resistant, non-aerated spray device.
Temperature Precision: Features a pre-installed temperature mixing valve with integral check valves, allowing for easy adjustment to the desired water temperature.
Dual Power Options: The unit can be powered by four "AA" batteries (included) or an AC adapter with a 72" (1830mm) power cable.
Operational Standards: Designed to function within a water pressure range of 20–125 PSI and a water temperature range of 40°F to 140°F.

Installation & Compatibility Requirements

Mounting Specifications: Fits standard mounting holes with a 1" (25mm) to 1.5" (38mm) diameter.
Counter Compatibility: Accommodates countertops and mounting surfaces up to a maximum thickness of 2.25" (57mm).
Supply Lines: Includes two 18" (457mm) flexible stainless steel supply hoses with 3/8" compression connections for direct installation.
Anti-Rotation Anchor: Equipped with an anti-rotation pin to secure the faucet on stainless steel sinks and prevent unit rotation.

Advanced Operational Features

The B-9951 includes a water-resistant control module box with internal switches that allow for the customization of several key settings:

Auto Time-Out: Water flow automatically shuts off after 15 seconds of continuous activation to prevent spills, with adjustable duration settings.
Water Shut-Off Delay: Features a 1-second default shut-off after the user's hands are removed, with the option to increase this delay.
Auto-Flush Mode: When enabled, the faucet flushes for 30 seconds every 12 hours after the last use to maintain water hygiene in the lines.
Metering Mode: Allows for a consistent 15-second water flow regardless of object presence once activated.
Maintenance Alerts: An integrated LED on the control module provides battery status, flashing red every 2 seconds for low batteries and remaining constant when batteries are dead.
