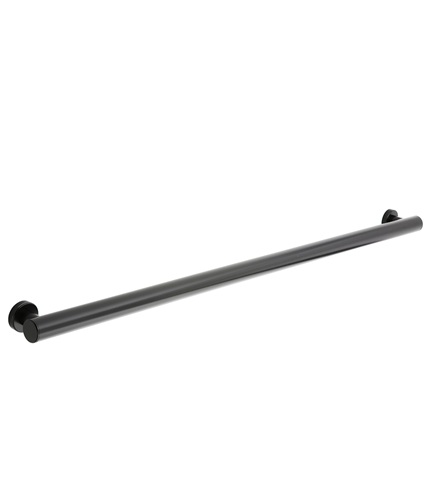

Bobrick B-9806x48.MBLK Description
Bobrick B-9806 series grab bar shall be stainless steel with satin finish or matte black, as specified. Grab bar shall have type 303, 14-gauge 1/16" (2mm) stainless steel tubing. 1-1/2" (38mm) outside diameter. Clearance between the grab bar and the wall shall be 1-1/2" (38mm). Concealed Mounting Flanges shall be 5/16" (8mm) thick, threaded solid stainless steel with satin finish or matte black, as specified. 2" (50mm) diameter, equipped with three screw holes for attachment to wall. Flange Covers shall be 1/8" (3mm) thick, threaded solid stainless steel with satin finish or matte black, as specified. 2" (50mm) diameter and shall conceal the mounting screws. Threaded solid support posts shall have 1/4" (6mm) wall thickness, 1" (25mm) outer diameter securing the flange covers. A metric M8 hex screw, with a curved washer shall connect the grab bar's tube with the flange. Grab bar shall comply with accessible design (including ADAAG in the USA) for structural strength.
Product Overview
The Bobrick B-9806x48.MBLK Fino Collection grab bar integrates a robust construction with a sleek matte black finish, making it both functional and aesthetically pleasing for commercial settings. Designed to offer reliable support, its stainless steel structure ensures durability while meeting ADA accessibility standards.
Key Features
- Durable stainless steel construction for longevity in high-traffic areas.
- Safety and support compliant with accessible design standards.
- Concealed mounting flanges enhance visual appeal while maintaining structural integrity.
- Clearance allows for easy grip and user comfort.
- Matte black finish complements a variety of restroom designs.
