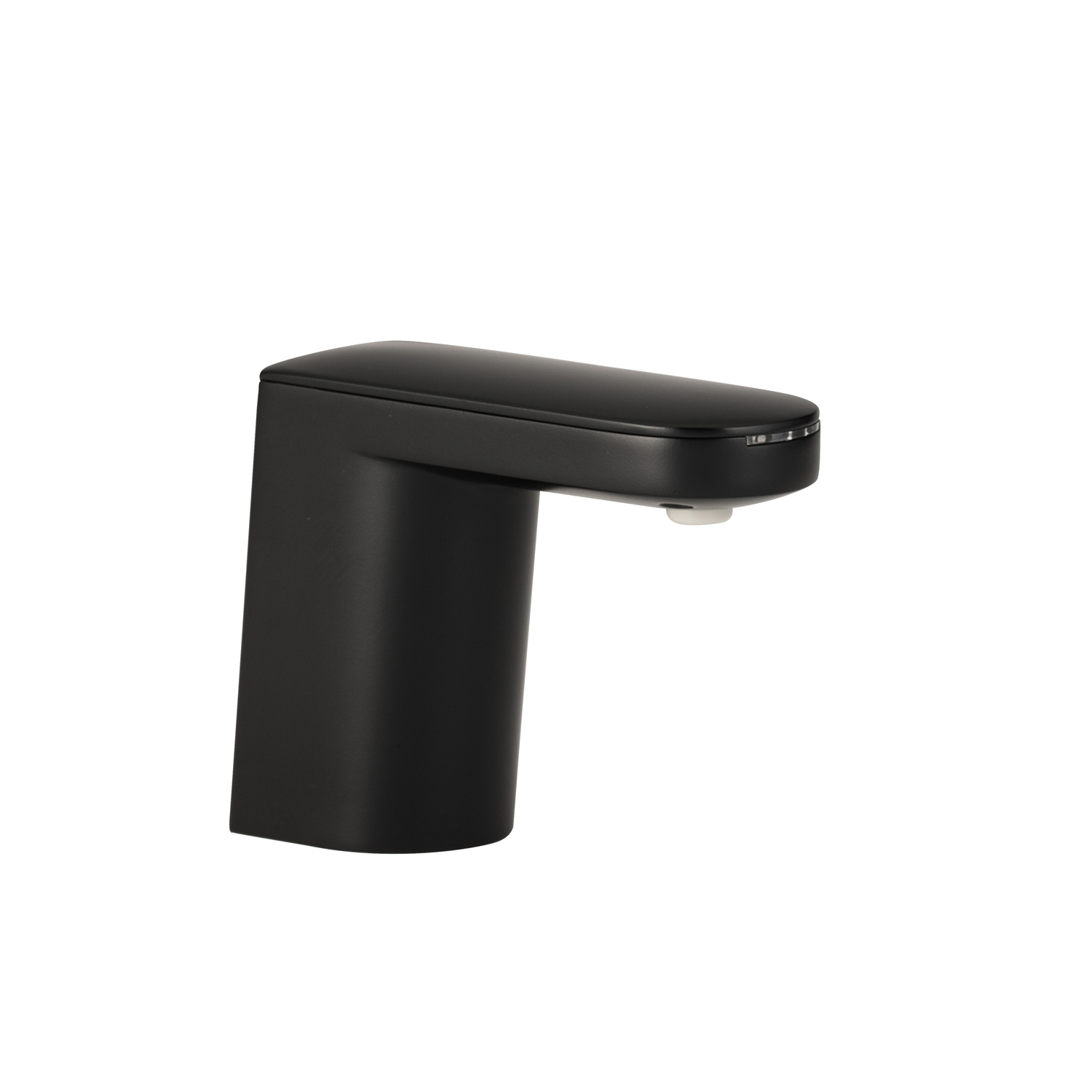

Bobrick B-952 Fino Automatic Liquid Soap Dispenser
The Bobrick B-952 is a high-performance, counter-mounted automatic soap dispenser from the Fino Collection, featuring a sleek Matte Black finish. Engineered for high-traffic commercial environments, this unit combines a sophisticated aesthetic with heavy-duty construction and touchless technology to provide a superior user experience while significantly reducing maintenance overhead.
Technical Specifications & Performance
- Durable Construction: The above-counter spout and stem assembly are crafted from durable die-cast zinc with a premium Matte Black finish.
- Large Capacity: Equipped with a 34-fl oz (1.0-L) translucent, shatter-resistant high-density polyethylene soap bottle.
- Effortless Top-Filling: Features a patented, spring-loaded lid that slides open forward with a concealed locking mechanism for quick refilling using a standard Bobkey.
- Precision Liquid Delivery: Utilizes a submerged plastic gear pump to deliver a controlled amount of liquid soap per activation.
- Adjustable Portion Control: An integrated portion control knob allows facility managers to field-adjust the volume of soap dispensed to meet specific usage requirements.
Installation & Compatibility Requirements
- Mounting Specifications: Requires a 1-3/8" (35mm) diameter mounting hole in countertops up to 2" (50mm) thick.
- Critical Clearances: Needs a minimum of 18-1/2" (470mm) vertical clearance and a 5" (127mm) diameter horizontal clearance below the mounting hole.
- Soap Compatibility: Engineered for commercially marketed all-purpose bulk liquid hand soaps within a viscosity range of 100 to 19,000 cP.
- Power Supply: Comes standard with a 6V AC adapter featuring a U.S. plug for consistent, battery-free operation.
Intelligent Monitoring & Maintenance
The B-952 features an advanced fiber optic system that provides real-time status updates through an LED indicator at the tip of the spout:
- Solid Green: Confirms the unit is active and currently dispensing.
- Flashing Blue: Low soap indicator, triggered when approximately 25% of the capacity remains.
- Flashing Red: Indicates an object remains in the activation zone, preventing false triggers and alerting staff to potential obstructions.
- Automatic System Flush: Includes a dedicated Flush Button in the bottom housing to facilitate routine cleaning and system maintenance.
Buy the Bobrick B-952 at the best price or request a high-volume price quote at ProDryers.
