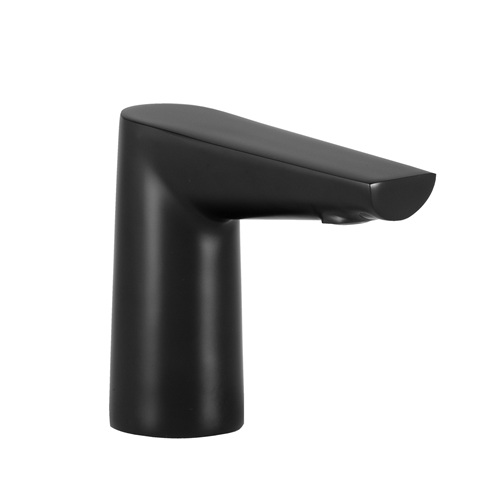

Bobrick B-8892 Designer Series Automatic Faucet in Matte Black

Bobrick B-8892 Designer Series Counter-Mounted Faucet shall be an ADA compliant automatic, touch-free sensor faucet. Spout is made of one-piece heavy-duty cast brass available in three different finishes. Unit shall offer adjustable operational settings for auto time-out adjustment, water shut-off delay adjustment, auto-flush mode, and metering mode. Unit shall use an IR Time-of-Flight sensor to detect occupant hands and trigger the water flow for hygienic, hands-free operation. Faucet includes a solenoid valve and is powered by 4 "AA" batteries (voltage range of 6 VDC Series) or the AC adapter provided. The Sensor activation range may be calibrated, dependent upon sink depth and finish. The Operating Water Pressure shall be in a range of 20 125 PSI (138-862kPA). The Operational Water Temperature shall be in the range of 40°F to 140°F (4.44°C to 60°C). The Flow Rate shall be in the range of 0.5 GPM/ 1.9 LPM Vandal resistant non-aerated. Certified to ASME A112.18.1/CSA B125.1, NSF 372, NSF 61 - Section 9, and UL 1951. Meets ADA ANSI/ICC A117.1 requirements. For LEED Compliance on flow rate, refer to your local codes.

Spec Sheet
Installation Instruction

Product Overview

This automatic faucet is designed to enhance restroom hygiene and user experience with its touch-free operation. The Bobrick B-8892 Designer Faucet not only reduces water usage but also ensures compliance with ADA standards, making it a reliable choice for commercial facilities.
