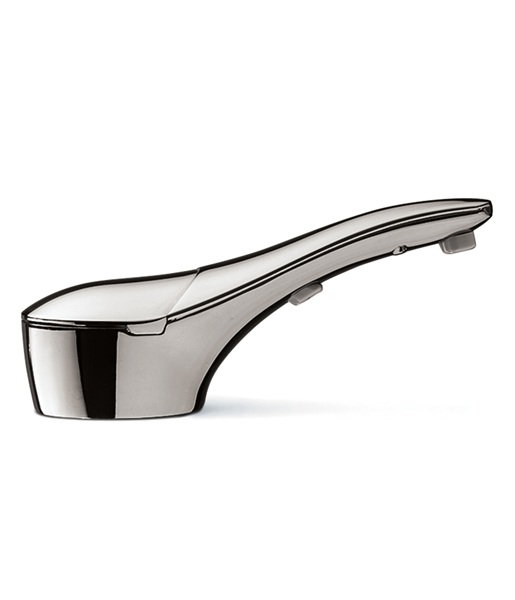

Bobrick B-856 Designer Series Automatic Liquid Soap Dispenser in Polished Nickel
Bobrick B-856 Designer Series Counter-Mounted Automatic Liquid Soap Dispenser shall dispense adjustable amount .4 to 3ml of commercially marketed all-purpose bulk liquid hand soaps, do not use iodine based or alcohol based soaps or sanitizers. Spout assembly shall be die cast zinc, with one of four finishes. Stem is integrated with spout and shall be Delrin plastic and accommodate up to 2" (50mm) thick counter tops. Unit shall be equipped with oversized funnel shape opening, covered by a 180° rotatable lid with concealed locking mechanism to allow for top filling. Unit shall have LED indicators to show unit is ready for activation. Unit shall have IR Sensor located on PC board housed in a water-resistant plastic housing. Activation Lens shall allow for defined activation range to eliminate chance of false activation during hand washing. Portion Control Knob shall allow field adjustment of desired volume of soap dispensed per hand wash. Unit shall be equipped with an Automatic System Flush Button to allow for cleaning and maintenance. Comes with 6V AC adapter.
Spec Sheet
Installation Instruction
Product Overview
The Bobrick B-856 Designer Series Automatic Liquid Soap Dispenser offers a polished nickel finish that enhances both aesthetics and functionality in commercial restrooms. Designed for easy top filling, it features an adjustable dispensation of liquid soap to cater to the needs of various users while promoting efficient handwashing practices.
Key Features
- Adjustable volume control ensures optimal soap dispensing for different handwashing needs.
- Durable die-cast zinc spout construction minimizes wear from frequent use.
- Top-fill design simplifies maintenance and restocking, saving time for custodial staff.
- IR sensor technology reduces the chance of soap waste by limiting false activations.
- LED indicators provide clear visual cues for operational status, enhancing user guidance.
